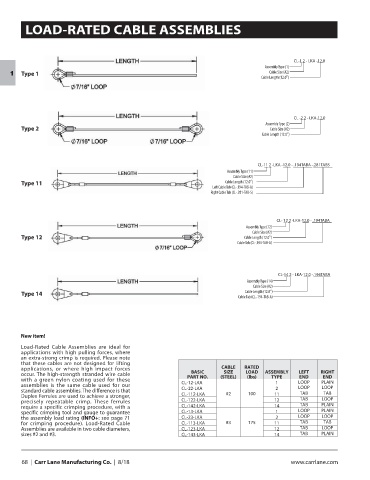

LOAD-RATED CABLE ASSEMBLIES

CL-1 2 - LKA -12.0
Assembly Type (1)
Type 1 Cable Size (#2)
1
Cable Length (12.0”)

CL -2 2 - LKA-12.0
Assembly Type (2)
Type 2 Cable Size (#2)
Cable Length (12.0”)

CL-11 2 -LKA -12.0 - .194TABA -.281TABS
Assembly Type (11)
Cable Size (#2)
Type 11 Cable Length (12.0”)
Left Cable Tab (CL-.194-TAB-A)
Right Cable Tab (CL-.281-TAB-S)

CL- 12 2 -LKA-12.0 - .194TABA
Assembly Type (12)
Cable Size (#2)
Type 12 Cable Length (12.0”)
Cable Tab (CL-.194-TAB-A)

CL-14 2 - LKA-12.0 -.194TABA
Assembly Type (14)
Cable Size (#2)
Cable Length (12.0”)
Type 14
Cable Tab (CL-.194-TAB-A)

New item!
Load-Rated Cable Assemblies are ideal for
applications with high pulling forces, where
an extra-strong crimp is required. Please note
that these cables are not designed for lifting
applications, or where high impact forces CABLE RATED
BASIC
SIZE
occur. The high-strength stranded wire cable PART NO. (STEEL) LOAD ASSEMBLY LEFT RIGHT
END
TYPE
END
(lbs)
with a green nylon coating used for these LOOP PLAIN
assemblies is the same cable used for our CL-12-LKA 1 LOOP LOOP
standard cable assemblies. The difference is that CL-22-LKA 2 TAB TAB
Duplex Ferrules are used to achieve a stronger, CL-112-LKA #2 100 11 TAB LOOP
precisely repeatable crimp. These ferrules CL-122-LKA 12
require a specific crimping procedure, with a CL-142-LKA 14 TAB PLAIN
specific crimping tool and gauge to guarantee CL-13-LKA 1 LOOP PLAIN
the assembly load rating (INFO+: see page 71 CL-23-LKA 2 LOOP LOOP
for crimping procedure). Load-Rated Cable CL-113-LKA #3 175 11 TAB TAB
Assemblies are available in two cable diameters, CL-123-LKA 12 TAB LOOP
sizes #2 and #3. CL-143-LKA 14 TAB PLAIN
