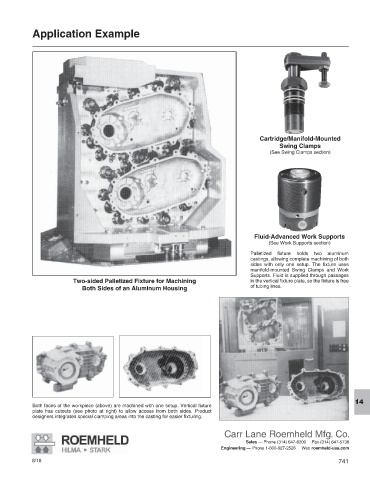

Application Example

Cartridge/Manifold-Mounted
Swing Clamps
(See Swing Clamps section)

Fluid-Advanced Work Supports
(See Work Supports section)
Palletized fixture holds two aluminum
castings, allowing complete machining of both
sides with only one setup. The fixture uses
manifold-mounted Swing Clamps and Work
Supports. Fluid is supplied through passages
Two-sided Palletized Fixture for Machining in the vertical fixture plate, so the fixture is free
Both Sides of an Aluminum Housing of tubing lines.

Both faces of the workpiece (above) are machined with one setup. Vertical fixture 14
plate has cutouts (see photo at right) to allow access from both sides. Product
designers integrated special clamping areas into the casting for easier fixturing.
