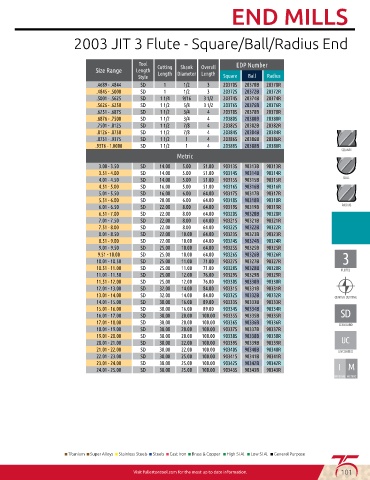

END MILLS

2003 JIT 3 Flute - Square/Ball/Radius End

Tool Cutting Shank Overall EDP Number
Size Range Length Length Diameter Length
Style Square Ball Radius
.4689 - .4844 SD 1 1/2 3 20370S 20370B 20370R
.4845 - .5000 SD 1 1/2 3 20372S 20372B 20372R
.5001 - .5625 SD 1 1/4 9/16 3 1/2 20374S 20374B 20374R
.5626 - .6250 SD 1 1/2 5/8 3 1/2 20376S 20376B 20376R
.6251 - .6875 SD 1 1/2 3/4 4 20378S 20378B 20378R
.6876 - .7500 SD 1 1/2 3/4 4 20380S 20380B 20380R
.7501 - .8125 SD 1 1/2 7/8 4 20382S 20382B 20382R
.8126 - .8750 SD 1 1/2 7/8 4 20384S 20384B 20384R
.8751 - .9375 SD 1 1/2 1 4 20386S 20386B 20386R
.9376 - 1.0000 SD 1 1/2 1 4 20388S 20388B 20388R
Metric

3.00 - 3.50 SD 14.00 5.00 51.00 90313S 90313B 90313R
3.51 - 4.00 SD 14.00 5.00 51.00 90314S 90314B 90314R
4.01 - 4.50 SD 14.00 5.00 51.00 90315S 90315B 90315R
4.51 - 5.00 SD 16.00 5.00 51.00 90316S 90316B 90316R
5.01 - 5.50 SD 16.00 6.00 64.00 90317S 90317B 90317R
5.51 - 6.00 SD 20.00 6.00 64.00 90318S 90318B 90318R
6.01 - 6.50 SD 22.00 8.00 64.00 90319S 90319B 90319R
6.51 - 7.00 SD 22.00 8.00 64.00 90320S 90320B 90320R
7.01 - 7.50 SD 22.00 8.00 64.00 90321S 90321B 90321R
7.51 - 8.00 SD 22.00 8.00 64.00 90322S 90322B 90322R
8.01 - 8.50 SD 22.00 10.00 64.00 90323S 90323B 90323R
8.51 - 9.00 SD 22.00 10.00 64.00 90324S 90324B 90324R
9.01 - 9.50 SD 25.00 10.00 64.00 90325S 90325B 90325R
9.51 - 10.00 SD 25.00 10.00 64.00 90326S 90326B 90326R
10.01 - 10.50 SD 25.00 11.00 71.00 90327S 90327B 90327R
10.51 - 11.00 SD 25.00 11.00 71.00 90328S 90328B 90328R
11.01 - 11.50 SD 25.00 12.00 76.00 90329S 90329B 90329R
11.51 - 12.00 SD 25.00 12.00 76.00 90330S 90330B 90330R
12.01 - 13.00 SD 32.00 14.00 84.00 90331S 90331B 90331R
13.01 - 14.00 SD 32.00 14.00 84.00 90332S 90332B 90332R
14.01 - 15.00 SD 38.00 16.00 89.00 90333S 90333B 90333R
15.01 - 16.00 SD 38.00 16.00 89.00 90334S 90334B 90334R
16.01 - 17.00 SD 38.00 20.00 100.00 90335S 90335B 90335R
17.01 - 18.00 SD 38.00 20.00 100.00 90336S 90336B 90336R
18.01 - 19.00 SD 38.00 20.00 100.00 90337S 90337B 90337R
19.01 - 20.00 SD 38.00 20.00 100.00 90338S 90338B 90338R
20.01 - 21.00 SD 38.00 22.00 100.00 90339S 90339B 90339R
21.01 - 22.00 SD 38.00 22.00 100.00 90340S 90340B 90340R UNCOATED
22.01 - 23.00 SD 38.00 25.00 100.00 90341S 90341B 90341R
23.01 - 24.00 SD 38.00 25.00 100.00 90342S 90342B 90342R
24.01 - 25.00 SD 38.00 25.00 100.00 90343S 90343B 90343R I M
IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose
