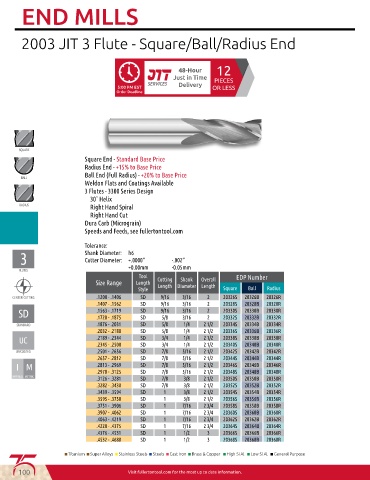

2003 JIT 3 Flute - Square/Ball/Radius End

48-Hour 12
Just in Time PIECES
Delivery
5:00 PM EST OR LESS
Order Deadline

Square End - Standard Base Price
Radius End - +15% to Base Price
Ball End (Full Radius) - +20% to Base Price
Weldon Flats and Coatings Available
3 Flutes - 3300 Series Design
30˚ Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool EDP Number
Size Range Length Cutting Shank Overall
Length Diameter Length
Style Square Ball Radius
.1200 - .1406 SD 9/16 3/16 2 20326S 20326B 20326R
.1407 - .1562 SD 9/16 3/16 2 20328S 20328B 20328R
.1563 - .1719 SD 9/16 3/16 2 20330S 20330B 20330R
.1720 - .1875 SD 5/8 3/16 2 20332S 20332B 20332R
.1876 - .2031 SD 5/8 1/4 2 1/2 20334S 20334B 20334R
.2032 - .2188 SD 5/8 1/4 2 1/2 20336S 20336B 20336R
.2189 - .2344 SD 3/4 1/4 2 1/2 20338S 20338B 20338R
.2345 - .2500 SD 3/4 1/4 2 1/2 20340S 20340B 20340R
UNCOATED .2501 - .2656 SD 7/8 5/16 2 1/2 20342S 20342B 20342R
.2657 - .2812 SD 7/8 5/16 2 1/2 20344S 20344B 20344R
I M .2813 - .2969 SD 7/8 5/16 2 1/2 20346S 20346B 20346R
.2970 - .3125 SD 7/8 5/16 2 1/2 20348S 20348B 20348R
IMPERIAL METRIC
.3126 - .3281 SD 7/8 3/8 2 1/2 20350S 20350B 20350R
.3282 - .3438 SD 7/8 3/8 2 1/2 20352S 20352B 20352R
.3439 - .3594 SD 1 3/8 2 1/2 20354S 20354B 20354R
.3595 - .3750 SD 1 3/8 2 1/2 20356S 20356B 20356R
.3751 - .3906 SD 1 7/16 2 3/4 20358S 20358B 20358R
.3907 - .4062 SD 1 7/16 2 3/4 20360S 20360B 20360R
.4063 - .4219 SD 1 7/16 2 3/4 20362S 20362B 20362R
.4220 - .4375 SD 1 7/16 2 3/4 20364S 20364B 20364R
.4376 - .4531 SD 1 1/2 3 20366S 20366B 20366R
.4532 - .4688 SD 1 1/2 3 20368S 20368B 20368R

■ Titanium ■ Super Alloys ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ High Si Al ■ Low Si Al ■ General Purpose
