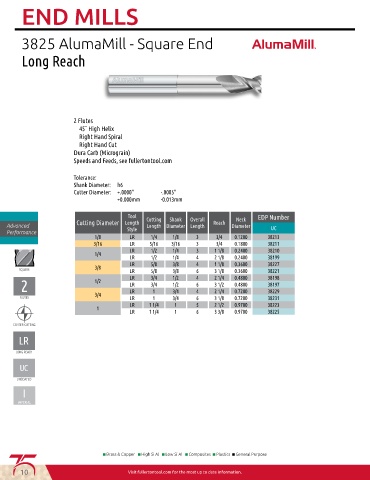

Page 12 - 75th-Online-Anniversary-Catalog
P. 12
END MILLS
Tool EDP Number
Neck
Cutting Diameter Length Cutting Shank Overall Reach Diameter
Length Diameter Length
Style UC
1/8 LR 1/4 1/8 3 3/4 0.1200 38213
3/16 LR 5/16 3/16 3 3/4 0.1800 38211
LR 1/2 1/4 3 1 1/8 0.2400 38210
1/4
LR 1/2 1/4 4 2 1/8 0.2400 38199
LR 5/8 3/8 4 1 1/8 0.3600 38227
3/8
LR 5/8 3/8 6 3 1/8 0.3600 38221
LR 3/4 1/2 4 2 1/4 0.4800 38198
1/2
LR 3/4 1/2 6 3 1/2 0.4800 38197
LR 1 3/4 4 2 1/4 0.7200 38229
3/4
LR 1 3/4 6 3 1/8 0.7200 38231
LR 1 1/4 1 5 2 1/2 0.9700 38223
1
LR 1 1/4 1 6 3 3/8 0.9700 38225
10 Visit fullertontool.com for the most up to date information.
