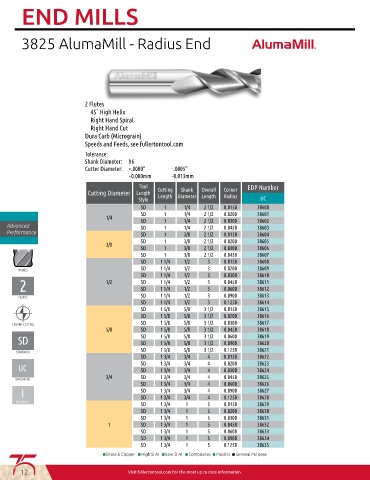

END MILLS

3825 AlumaMill - Radius End

2 Flutes
45˚ High Helix
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com
Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.0005”
+0.000mm -0.013mm
Tool Cutting Shank Overall Corner EDP Number
Cutting Diameter Length Length Diameter Length Radius
Style UC
SD 1 1/4 2 1/2 0.0150 38600
SD 1 1/4 2 1/2 0.0200 38601
1/4 SD 1 1/4 2 1/2 0.0300 38602
Advanced SD 1 1/4 2 1/2 0.0450 38603
Performance SD 1 3/8 2 1/2 0.0150 38604
SD 1 3/8 2 1/2 0.0200 38605
3/8
SD 1 3/8 2 1/2 0.0300 38606
SD 1 3/8 2 1/2 0.0450 38607
SD 1 1/4 1/2 3 0.0150 38608
SD 1 1/4 1/2 3 0.0200 38609
SD 1 1/4 1/2 3 0.0300 38610
1/2 SD 1 1/4 1/2 3 0.0450 38611
SD 1 1/4 1/2 3 0.0600 38612
SD 1 1/4 1/2 3 0.0900 38613
SD 1 1/4 1/2 3 0.1250 38614
SD 1 5/8 5/8 3 1/2 0.0150 38615
SD 1 5/8 5/8 3 1/2 0.0200 38616
SD 1 5/8 5/8 3 1/2 0.0300 38617
5/8 SD 1 5/8 5/8 3 1/2 0.0450 38618
SD 1 5/8 5/8 3 1/2 0.0600 38619
SD 1 5/8 5/8 3 1/2 0.0900 38620
SD 1 5/8 5/8 3 1/2 0.1250 38621
SD 1 3/4 3/4 4 0.0150 38622
SD 1 3/4 3/4 4 0.0200 38623
SD 1 3/4 3/4 4 0.0300 38624
3/4 SD 1 3/4 3/4 4 0.0450 38625
UNCOATED
SD 1 3/4 3/4 4 0.0600 38626
I SD 1 3/4 3/4 4 4 0.0900 38627
SD
1 3/4
3/4
38628
0.1250
IMPERIAL SD 1 3/4 1 5 0.0150 38629
SD 1 3/4 1 5 0.0200 38630
SD 1 3/4 1 5 0.0300 38631
1 SD 1 3/4 1 5 0.0450 38632
SD 1 3/4 1 5 0.0600 38633
SD 1 3/4 1 5 0.0900 38634
SD 1 3/4 1 5 0.1250 38635
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Composites ■ Plastics ■ General Purpose
