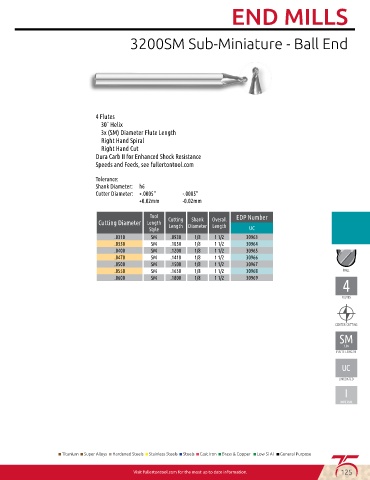

Page 127 - 75th-Online-Anniversary-Catalog
P. 127
END MILLS
3200SM Sub-Miniature - Ball End
4 Flutes
30˚ Helix
3x (SM) Diameter Flute Length
Right Hand Spiral
Right Hand Cut
Dura Carb II for Enhanced Shock Resistance
Speeds and Feeds, see fullertontool.com
Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0005” -.0005”
+0.02mm -0.02mm
Tool EDP Number
Cutting Diameter Length Cutting Shank Overall
Length Diameter Length
Style UC
.0310 SM .0930 1/8 1 1/2 30963
.0350 SM .1050 1/8 1 1/2 30964
.0400 SM .1200 1/8 1 1/2 30965
.0470 SM .1410 1/8 1 1/2 30966
.0500 SM .1500 1/8 1 1/2 30967
.0550 SM .1650 1/8 1 1/2 30968
.0600 SM .1800 1/8 1 1/2 30969
SM
3.0x
FLUTE LENGTH
UNCOATED
I
IMPERIAL
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Brass & Copper ■ Low Si Al ■ General Purpose
Visit fullertontool.com for the most up to date information. 125
