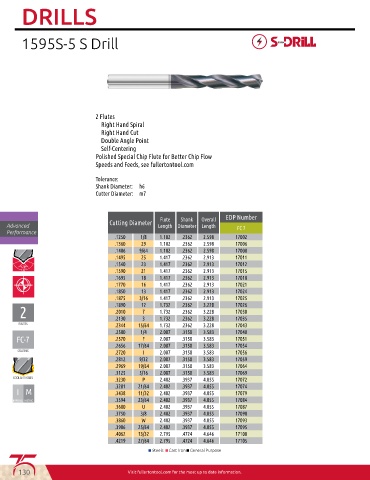

Page 132 - 75th-Online-Anniversary-Catalog

DRILLS

1595S-5 S Drill

2 Flutes
Right Hand Spiral
Right Hand Cut
Double Angle Point
Self-Centering
Polished Special Chip Flute for Better Chip Flow
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: m7

Cutting Diameter Flute Shank Overall EDP Number
Advanced Length Diameter Length FC 7
Performance
.1250 1/8 1.102 .2362 2.598 17002
.1360 29 1.102 .2362 2.598 17006
.1406 9/64 1.102 .2362 2.598 17008
.1495 25 1.417 .2362 2.913 17011
.1540 23 1.417 .2362 2.913 17012
.1590 21 1.417 .2362 2.913 17015
.1695 18 1.417 .2362 2.913 17018
.1770 16 1.417 .2362 2.913 17021
.1850 13 1.417 .2362 2.913 17024
.1875 3/16 1.417 .2362 2.913 17025
.1890 12 1.732 .2362 3.228 17026
.2010 7 1.732 .2362 3.228 17030
.2130 3 1.732 .2362 3.228 17035
.2344 15/64 1.732 .2362 3.228 17043
.2500 1/4 2.087 .3150 3.583 17048
.2570 F 2.087 .3150 3.583 17051
.2656 17/64 2.087 .3150 3.583 17054
.2720 I 2.087 .3150 3.583 17056
.2812 9/32 2.087 .3150 3.583 17059
.2969 19/64 2.087 .3150 3.583 17064
.3125 5/16 2.087 .3150 3.583 17069
.3230 P 2.402 .3937 4.055 17072
.3281 21/64 2.402 .3937 4.055 17074
I M .3438 11/32 2.402 .3937 4.055 17079
IMPERIAL METRIC .3594 23/64 2.402 .3937 4.055 17084
.3680 U 2.402 .3937 4.055 17087
.3750 3/8 2.402 .3937 4.055 17090
.3860 W 2.402 .3937 4.055 17093
.3906 25/64 2.402 .3937 4.055 17095
.4062 13/32 2.795 .4724 4.646 17100
.4219 27/64 2.795 .4724 4.646 17105
■ Steels ■ Cast Iron ■ General Purpose
