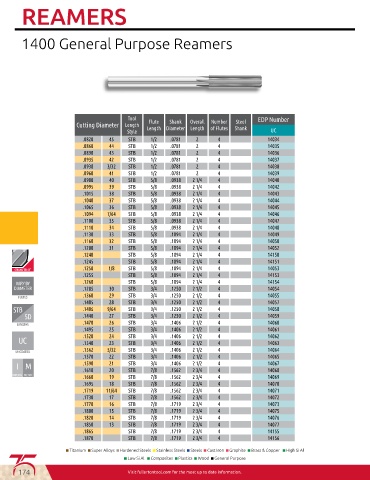

REAMERS

1400 General Purpose Reamers

Tool Flute Shank Overall Number Steel EDP Number
Cutting Diameter Length Length Diameter Length of Flutes Shank
Style UC
.0820 45 STB 1/2 .0781 2 4 14034
.0860 44 STB 1/2 .0781 2 4 14035
.0890 43 STB 1/2 .0781 2 4 14036
.0935 42 STB 1/2 .0781 2 4 14037
.0938 3/32 STB 1/2 .0781 2 4 14038
.0960 41 STB 1/2 .0781 2 4 14039
.0980 40 STB 5/8 .0938 2 1/4 4 14040
.0995 39 STB 5/8 .0938 2 1/4 4 14042
.1015 38 STB 5/8 .0938 2 1/4 4 14043
.1040 37 STB 5/8 .0938 2 1/4 4 14044
.1065 36 STB 5/8 .0938 2 1/4 4 14045
.1094 7/64 STB 5/8 .0938 2 1/4 4 14046
.1100 35 STB 5/8 .0938 2 1/4 4 14047
.1110 34 STB 5/8 .0938 2 1/4 4 14048
.1130 33 STB 5/8 .1094 2 1/4 4 14049
.1160 32 STB 5/8 .1094 2 1/4 4 14050
.1200 31 STB 5/8 .1094 2 1/4 4 14052
.1240 STB 5/8 .1094 2 1/4 4 14150
.1245 STB 5/8 .1094 2 1/4 4 14151
.1250 1/8 STB 5/8 .1094 2 1/4 4 14053
.1255 STB 5/8 .1094 2 1/4 4 14153
.1260 STB 5/8 .1094 2 1/4 4 14154
.1285 30 STB 3/4 .1250 2 1/2 4 14054
.1360 29 STB 3/4 .1250 2 1/2 4 14055
.1405 28 STB 3/4 .1250 2 1/2 4 14057
.1406 9/64 STB 3/4 .1250 2 1/2 4 14058
.1440 27 STB 3/4 .1250 2 1/2 4 14059
.1470 26 STB 3/4 .1406 2 1/2 4 14060
.1495 25 STB 3/4 .1406 2 1/2 4 14061
.1520 24 STB 3/4 .1406 2 1/2 4 14062
.1540 23 STB 3/4 .1406 2 1/2 4 14063
.1562 5/32 STB 3/4 .1406 2 1/2 4 14064
UNCOATED
.1570 22 STB 3/4 .1406 2 1/2 4 14065
I M .1590 21 STB 3/4 .1406 2 1/2 4 4 14067
7/8
STB
20
.1562
14068
.1610
2 3/4
IMPERIAL METRIC .1660 19 STB 7/8 .1562 2 3/4 4 14069
.1695 18 STB 7/8 .1562 2 3/4 4 14070
.1719 11/64 STB 7/8 .1562 2 3/4 4 14071
.1730 17 STB 7/8 .1562 2 3/4 4 14072
.1770 16 STB 7/8 .1719 2 3/4 4 14073
.1800 15 STB 7/8 .1719 2 3/4 4 14075
.1820 14 STB 7/8 .1719 2 3/4 4 14076
.1850 13 STB 7/8 .1719 2 3/4 4 14077
.1865 STB 7/8 .1719 2 3/4 4 14155
.1870 STB 7/8 .1719 2 3/4 4 14156
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Graphite ■ Brass & Copper ■ High Si Al
■ Low Si Al ■ Composites ■ Plastics ■ Wood ■ General Purpose
