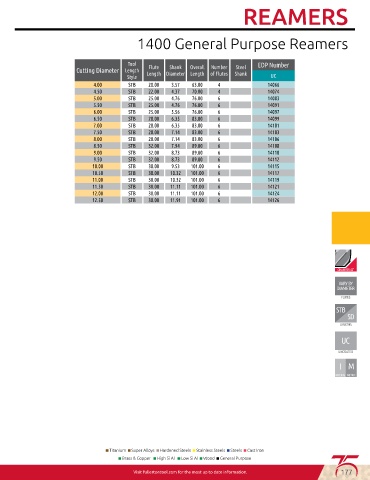

Page 179 - 75th-Online-Anniversary-Catalog

REAMERS

1400 General Purpose Reamers

Tool Flute Shank Overall Number Steel EDP Number
Cutting Diameter Length Length Diameter Length of Flutes Shank
Style UC
4.00 STB 20.00 3.57 63.00 4 14066
4.50 STB 22.00 4.37 70.00 4 14074
5.00 STB 25.00 4.76 76.00 6 14083
5.50 STB 25.00 4.76 76.00 6 14091
6.00 STB 25.00 5.56 76.00 6 14097
6.50 STB 28.00 6.35 83.00 6 14099
7.00 STB 28.00 6.35 83.00 6 14101
7.50 STB 28.00 7.14 83.00 6 14103
8.00 STB 28.00 7.14 83.00 6 14106
8.50 STB 32.00 7.94 89.00 6 14108
9.00 STB 32.00 8.73 89.00 6 14110
9.50 STB 32.00 8.73 89.00 6 14112
10.00 STB 38.00 9.53 101.00 6 14115
10.50 STB 38.00 10.32 101.00 6 14117
11.00 STB 38.00 10.32 101.00 6 14119
11.50 STB 38.00 11.11 101.00 6 14121
12.00 STB 38.00 11.11 101.00 6 14124
12.50 STB 38.00 11.91 101.00 6 14126

UNCOATED
I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron
■ Brass & Copper ■ High Si Al ■ Low Si Al ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 177
