Page 3 - PRYSMIAN

A brand of the

Certificate No 077b*
Certificate No 517b*

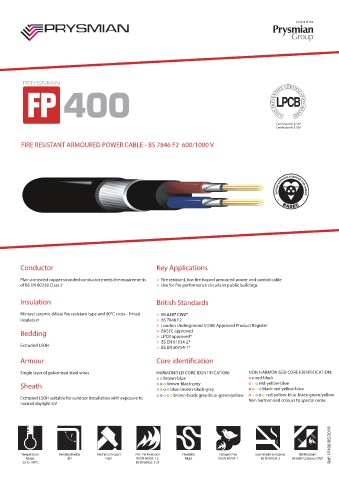

FIRE RESISTANT ARMOURED POWER CABLE - BS 7846 F2 600/1000 V

Conductor Key Applications

Plain annealed copper stranded conductor meets the requirements > Fire resistant, low fire hazard armoured power and control cable
of BS EN 60228 Class 2 > Use for fire performance circuits in public buildings

Insulation British Standards

Mineral ceramic (Mica) fire resistant tape and 90°C cross - linked > BS 6387 CWZ*
insulation > BS 7846 F2
> London Underground S1085 Approved Product Register
Bedding > BASEC approved
> LPCB approved*
Extruded LSOH > BS EN 61034-2*
> BS EN 60754-1*

Armour Core identification
CABLE DESCRIPTION
Single layer of galvanised steel wires HARMONISED CORE IDENTIFICATION: NON HARMONISED CORE IDENTIFICATION:
o o brown-blue o o red-black l
Sheath o o o brown-black-grey o o o red-yellow-blue
o o o o black-red-yellow-blue
o o o o blue-brown-black-grey
o o o o brown-black-grey-blue-green/yellow o o o o red-yellow-blue-black-green/yellow
Extruded LSOH suitable for outdoor installation with exposure to Non harmonised colours to special order.
normal daylight UV

Ref: FP400/05/2019

Halogen Free
Temperature Bending Radius Mechanical Impact Fire Performance Flexibility Halogen Free Low Smoke Emissions Fire Resistant
Fire Performance
Flexibilty
Fire Resistant
Low Smoke Emissions
Mechnical Impact
Bending Radius
Temperature
Range Fixed r=8D Excellent BSEN60332-1-2 Rigid BSEN50267-2-1 BSEN61034-2 BS 6387 Category CWZ
BS7346-6
Rigid
Range
BS EN 61034-2
High
BS EN 60754-1
BS EN 60332-1-2
8D
-25 to +90˚C BS EN 60332-3-24 120min
BSEN50266-2-4
-25 to +90°C
BSEN60332-1-2
BSEN61034-2
EN50200 PH30 & PH60
