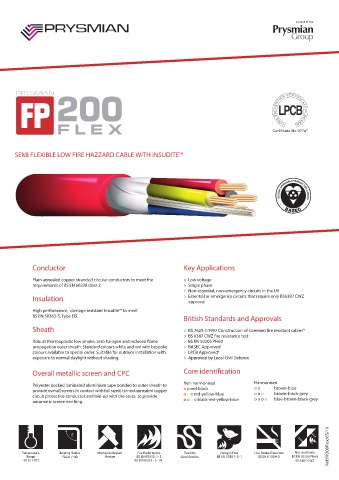

Page 1 - PRYSMIAN

A brand of the

Certificate No 077a*

SEMI FLEXIBLE LOW FIRE HAZZARD CABLE WITH INSUDITE™

Conductor Key Applications

Plain annealed copper stranded circular conductors to meet the > Low voltage
requirements of BS EN 60228 class 2. > Single phase
> Non-essential, non-emergency circuits in the UK
Insulation > Essential or emergency circuits that require only BS6387 CWZ
approval
High performance, damage resistant Insudite™ to meet
BS EN 50363-5, Type EI5. British Standards and Approvals
Sheath > BS 7629-1:1997 Construction of screened fire resistant cables*
> BS 6387 CWZ fire resistance test
Robust thermoplastic low smoke, zero halogen and reduced flame > BS EN 50200 PH60
propagation outer sheath. Standard colours white and red with bespoke > BASEC Approved
colours available to special order. Suitable for outdoor installation with > LPCB Approved*
exposure to normal daylight without shading. > Approved by Local Civil Defence

Overall metallic screen and CPC Core identification
l
Polyester backed laminated aluminium tape bonded to outer sheath to Non harmonised Harmonised
provide overall screen. In contact with full sized, tinned annealed copper o o red-black o o brown-blue
brown-black-grey
o o o
circuit protective conductor and laid-up with the cores to provide o o o red-yellow-blue
automatic screen earthing. o o o o black-red-yellow-blue o o o o blue-brown-black-grey

Ref:FP200Flex/05/19

Fire Resistance
Temperature Bending Radius Mechanical Impact Fire Performance Flexibilty Halogen Free Low Smoke Emissions Fire resistance
Range Fixed r=6D Medium BS EN 60332-1-2 Semi flexible BS EN 50267-2-1 BS EN 61034-2 BS6387 Category CWZ
BS EN 50200 PH60
Rigid
Fixed r=4D
BS EN 50266-2-4
-20 to +70˚C BS EN 60332 - 3 - 24 BS EN 50200 PH30 & PH60 3
BS 6387 CWZ
BS EN 50200 Annex E
BSEN60332-1-2
BSEN61034-2
EN50200 PH30 & PH60
