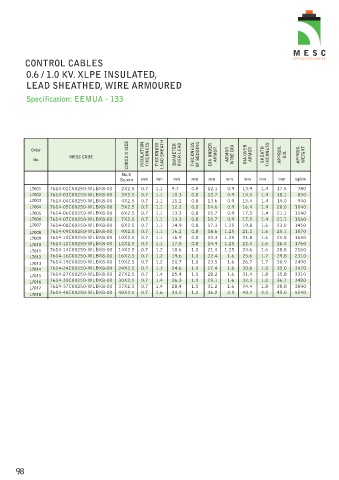

CONTROL CABLES

0.6 / 1.0 KV. XLPE INSULATED,
LEAD SHEATHED, WIRE ARMOURED

Specification: EEMUA - 133

CORES X SIZE INSULATION THICKNESS THICKNESS LEAD SHEATH DIAMETER OVER LEAD THICKNESS OF BEDDING DIA UNDER ARMOR ARMOR WIRE DIA DIA OVER ARMOR SHEATH THICKNESS APPROX. O.D. APPROX. WEIGHT
Order
MESC CODE
No.

No.X
Sq.mm mm mm mm mm mm mm mm mm mm kg/km
L7001 7614-02C00250-WLBK8-00 2X2.5 0.7 1.1 9.7 0.8 12.1 0.9 13.9 1.4 17.5 780
L7002 7614-03C00250-WLBK8-00 3X2.5 0.7 1.1 10.3 0.8 12.7 0.9 14.5 1.4 18.1 850
L7003 7614-04C00250-WLBK8-00 4X2.5 0.7 1.1 11.2 0.8 13.6 0.9 15.4 1.4 19.0 940
L7004 7614-05C00250-WLBK8-00 5X2.5 0.7 1.1 12.2 0.8 14.6 0.9 16.4 1.4 20.0 1040
L7005 7614-06C00250-WLBK8-00 6X2.5 0.7 1.1 13.3 0.8 15.7 0.9 17.5 1.4 21.1 1140
L7006 7614-07C00250-WLBK8-00 7X2.5 0.7 1.1 13.3 0.8 15.7 0.9 17.5 1.4 21.1 1160
L7007 7614-08C00250-WLBK8-00 8X2.5 0.7 1.1 14.9 0.8 17.3 1.25 19.8 1.6 23.8 1450
L7008 7614-09C00250-WLBK8-00 9X2.5 0.7 1.1 16.2 0.8 18.6 1.25 21.1 1.6 25.1 1570
L7009 7614-10C00250-WLBK8-00 10X2.5 0.7 1.1 16.9 0.8 19.3 1.25 21.8 1.6 25.8 1650
L7010 7614-12C00250-WLBK8-00 12X2.5 0.7 1.1 17.5 0.8 19.9 1.25 22.4 1.6 26.4 1760
L7011 7614-14C00250-WLBK8-00 14X2.5 0.7 1.2 18.6 1.0 21.4 1.25 24.6 1.6 28.8 2160
L7012 7614-16C00250-WLBK8-00 16X2.5 0.7 1.2 19.6 1.0 22.4 1.6 25.6 1.7 29.8 2310
L7013 7614-19C00250-WLBK8-00 19X2.5 0.7 1.2 20.7 1.0 23.5 1.6 26.7 1.7 30.9 2490
L7014 7614-24C00250-WLBK8-00 24X2.5 0.7 1.3 24.6 1.0 27.4 1.6 30.6 1.8 35.0 3070
L7015 7614-27C00250-WLBK8-00 27X2.5 0.7 1.4 25.4 1.0 28.2 1.6 31.4 1.8 35.8 3310
L7016 7614-30C00250-WLBK8-00 30X2.5 0.7 1.4 26.3 1.0 29.1 1.6 32.3 1.8 36.7 3480
L7017 7614-37C00250-WLBK8-00 37X2.5 0.7 1.4 28.4 1.0 31.2 1.6 34.4 1.8 38.8 3890
7614-48C00250-WLBK8-00 48X2.5 0.7 1.6 33.0 1.2 36.2 2.0 40.2 2.0 45.0 5240
L7018
