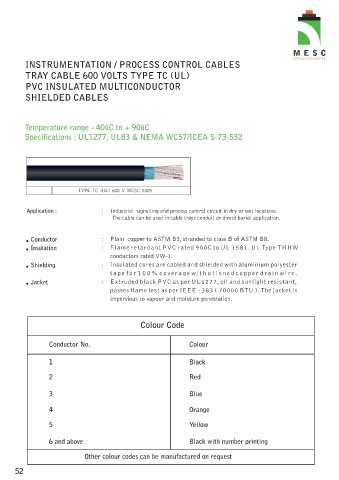

INSTRUMENTATION / PROCESS CONTROL CABLES

TRAY CABLE 600 VOLTS TYPE TC (UL)
PVC INSULATED MULTICONDUCTOR

SHIELDED CABLES

Temperature range - 40ûC to + 90ûC
Specifications : UL1277, UL83 & NEMA WC57/ICEA S-73-532

TYPE TC (UL) 600 V MESC 2005

Application : : Industrial signalling and process control circuit in dry or wet locations.
The cable can be used in cable trays conduit or direct burial application.

Conductor : Plain copper to ASTM B3, stranded to class B of ASTM B8.
Insulation : Flame retardant PVC rated 90ûC to UL 1581. UL Type THHW
conductors rated VW-1.
Shielding : Insulated cores are cabled and shielded with aluminium polyester
tape fo r 100% cove r age with a ti nned coppe r dr ai n wire.
Jacket : Extruded black PVC as per UL1277, oil and sunlight resistant,
passes flame test as per IEEE - 383 ( 70000 BTU ). The jacket is
impervious to vapour and moisture penetration.

Colour Code

Conductor No. Colour

1 Black

2 Red

3 Blue

4 Orange

5 Yellow

6 and above Black with number printing

Other colour codes can be manufactured on request

52
