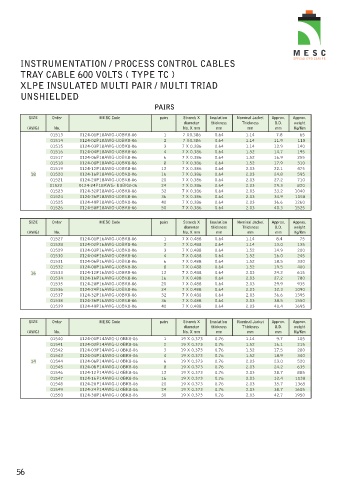

INSTRUMENTATION / PROCESS CONTROL CABLES

TRAY CABLE 600 VOLTS ( TYPE TC )
XLPE INSULATED MULTI PAIR / MULTI TRIAD
UNSHIELDED

PAIRS

SIZE Order MESC Code pairs Strands X Insulation Nominal Jacket Approx. Approx.
diameter thickness Thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01513 0124-01P18AWG-U0BK8-06 1 7 X0.386 0.64 1.14 7.8 65
01514 0124-02P18AWG-U0BK8-06 2 7 X0.386 0.64 1.14 11.9 110
01515 0124-03P18AWG-U0BK8-06 3 7 X 0.386 0.64 1.14 12.9 140
01516 0124-04P18AWG-U0BK8-06 4 7 X 0.386 0.64 1.52 14.7 195
01517 0124-06P18AWG-U0BK8-06 6 7 X 0.386 0.64 1.52 16.9 255
01518 0124-08P18AWG-U0BK8-06 8 7 X 0.386 0.64 1.52 17.9 310
01519 0124-12P18AWG-U0BK8-06 12 7 X 0.386 0.64 2.03 22.1 475
18 01520 0124-16P18AWG-U0BK8-06 16 7 X 0.386 0.64 2.03 24.8 595
01521 0124-20P18AWG-U0BK8-06 20 7 X 0.386 0.64 2.03 27.2 710
01522 0124-24P18AWG- U0BK8-06 24 7 X 0.386 0.64 2.03 29.3 820
01523 0124-32P18AWG-U0BK8-06 32 7 X 0.386 0.64 2.03 33.2 1040
01524 0124-36P18AWG-U0BK8-06 36 7 X 0.386 0.64 2.03 34.9 1150
01525 0124-40P18AWG-U0BK8-06 40 7 X 0.386 0.64 2.03 36.6 1260
01526 0124-50P18AWG-U0BK8-06 50 7 X 0.386 0.64 2.03 40.3 1525

SIZE Order MESC Code pairs Strands X Insulation Nominal Jacket Approx. Approx.
diameter thickness Thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01527 0124-01P16AWG-U0BK8-06 1 7 X 0.488 0.64 1.14 8.4 75
01528 0124-02P16AWG-U0BK8-06 2 7 X 0.488 0.64 1.14 13.0 135
01529 0124-03P16AWG-U0BK8-06 3 7 X 0.488 0.64 1.52 14.9 200
01530 0124-04P16AWG-U0BK8-06 4 7 X 0.488 0.64 1.52 16.0 245
01531 0124-06P16AWG-U0BK8-06 6 7 X 0.488 0.64 1.52 18.5 330
01532 0124-08P16AWG-U0BK8-06 8 7 X 0.488 0.64 1.52 19.5 400
16 01533 0124-12P16AWG-U0BK8-06 12 7 X 0.488 0.64 2.03 24.2 615
01534 0124-16P16AWG-U0BK8-06 16 7 X 0.488 0.64 2.03 27.2 780
01535 0124-20P16AWG-U0BK8-06 20 7 X 0.488 0.64 2.03 29.9 935
01536 0124-24P16AWG-U0BK8-06 24 7 X 0.488 0.64 2.03 32.3 1090
01537 0124-32P16AWG-U0BK8-06 32 7 X 0.488 0.64 2.03 36.6 1395
01538 0124-36P16AWG-U0BK8-06 36 7 X 0.488 0.64 2.03 38.5 1550
01539 0124-40P16AWG-U0BK8-06 40 7 X 0.488 0.64 2.03 40.4 1695

SIZE Order MESC Code pairs Strands X Insulation Nominal Jacket Approx. Approx.
diameter thickness Thickness O.D. weight
(AWG) No. No. X mm mm mm mm Kg/Km
01540 0124-01P14AWG-U 0BK8-06 1 19 X 0.373 0.76 1.14 9.7 105
01541 0124-02P14AWG-U 0BK8-06 2 19 X 0.373 0.76 1.52 16.1 215
01542 0124-03P14AWG-U 0BK8-06 3 19 X 0.373 0.76 1.52 17.5 280
01543 0124-04P14AWG-U 0BK8-06 4 19 X 0.373 0.76 1.52 18.9 340
14 01544 0124-06P14AWG-U 0BK8-06 6 19 X 0.373 0.76 2.03 23.0 520
01545 0124-08P14AWG-U 0BK8-06 8 19 X 0.373 0.76 2.03 24.2 635
01546 0124-12P14AWG-U 0BK8-06 12 19 X 0.373 0.76 2.03 28.7 885
01547 0124-16P14AWG-U 0BK8-06 16 19 X 0.373 0.76 2.03 32.4 1130
01548 0124-20P14AWG-U 0BK8-06 20 19 X 0.373 0.76 2.03 35.7 1365
01549 0124-24P14AWG-U 0BK8-06 24 19 X 0.373 0.76 2.03 38.7 1605
01550 0124-30P14AWG-U 0BK8-06 30 19 X 0.373 0.76 2.03 42.7 1950
