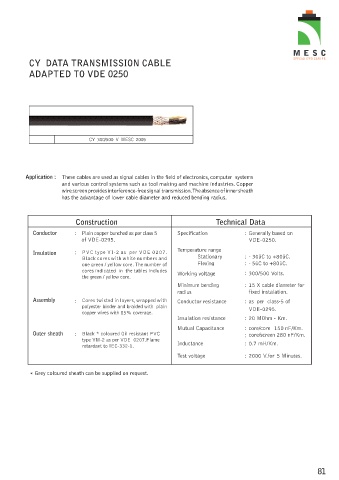

CY DATA TRANSMISSION CABLE
ADAPTED TO VDE 0250

CY 300/500 V MESC 2005

Application : These cables are used as signal cables in the field of electronics, computer systems
and various control systems such as tool making and machine industries. Copper
wire screen provides interference-free signal transmission.The absence of inner sheath
has the advantage of lower cable diameter and reduced bending radius.

Construction Technical Data

Conductor : Plain copper bunched as per class 5 Specification : Generally based on
of VDE-0295. VDE-0250.
Temperature range
Insulation : PVC type YI-2 as per VDE 0207.
Black cores with white numbers and Stationary : - 30ûC to +80ûC.
one green / yellow core. The number of Flexing : - 5ûC to +80ûC.
cores indicated in the tables includes Working voltage : 300/500 Volts.
the green / yellow core.
Minimum bending : 15 X cable diameter for
radius fixed instalation.
Assembly : Cores twisted in layers, wrapped with Conductor resistance : as per class-5 of
polyester binder and braided with plain VDE-0295.
copper wires with 85% coverage.
Insulation resistance : 20 MOhm - Km.

Mutual Capacitance : core/core 150 nF/Km.
Outer sheath : Black * coloured Oil resistant PVC : core/screen 280 nF/Km.
type YM-2 as per VDE 0207.Flame
retardant to IEC-332-1. Inductance : 0.7 mH/Km.

Test voltage : 2000 V.for 5 Minutes.

* Grey coloured sheath can be supplied on request.
