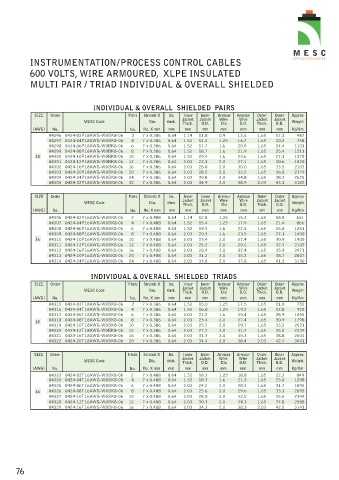

INSTRUMENTATION / PROCESS CONTROL CABLES
600 VOLTS, WIRE ARMOURED, XLPE INSULATED

MULTI PAIR / TRIAD INDIVIDUAL & OVERALL SHIELDED

INDIVIDUAL & OVERALL SHIELDED PAIRS
SIZE Order Pairs Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Weight
Thick. O.D. Dia O.D. Thick. O.D.
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
04296 0424-02P18AWG-W0BK8-06 2 7 x 0.386 0.64 1.14 11.8 0.9 13.6 1.65 17.1 487
6
04297 0424-04P18AWG-W0BK8-06 4 7 x 0.386 0.64 1.52 14.2 1.25 17 1.65 20.2 758
.
04298 0424-06P18AWG-W0BK8-06 6 7 x 0.386 0.64 1.52 17.7 1.6 20.9 1.65 24.4 1101
04299 0424-08P18AWG-W0BK8-06 8 7 x 0.386 0.64 1.52 18.7 1.6 21.9 1.65 25.4 1211
18 04300 0424-10P18AWG-W0BK8-06 10 7 x 0.386 0.64 1.52 20.4 1.6 23.6 1.65 27.1 1370
04301 0424-12P18AWG-W0BK8-06 12 7 x 0.386 0.64 2.03 23.1 2.0 27.1 1.65 30.6 1820
04302 0424-16P18AWG-W0BK8-06 16 7 x 0.386 0.64 2.03 26.0 2.0 30.0 1.65 33.5 2103
04303 0424-20P18AWG-W0BK8-06 20 7 x 0.386 0.64 2.03 28.5 2.0 32.5 1.65 36.0 2379
04304 0424-24P18AWG-W0BK8-06 24 7 x 0.386 0.64 2.03 30.8 2.0 34.8 1.65 38.3 2625
04305 0424-32P18AWG-W0BK8-06 32 7 x 0.386 0.64 2.03 34.9 2.0 38.9 2.03 43.1 3182
SIZE Order Pairs Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Weight
Thick. O.D. Dia O.D. Thick. O.D.
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
04306 0424-02P16AWG-W0BK8-06 2 7 x 0.488 0.64 1.14 12.8 1.25 15.3 1.65 18.8 651
04307 0424-04P16AWG-W0BK8-06 4 7 x 0.488 0.64 1.52 15.4 1.25 17.9 1.65 21.4 866
04308 0424-06P16AWG-W0BK8-06 6 7 x 0.488 0.64 1.52 19.3 1.6 22.5 1.65 26.0 1261
04309 0424-08P16AWG-W0BK8-06 8 7 x 0.488 0.64 2.03 20.3 1.6 23.5 1.65 27.1 1400
16 04310 0424-10P16AWG-W0BK8-06 10 7 x 0.488 0.64 2.03 23.4 2.0 27.4 1.65 30.9 1900
04311 0424-12P16AWG-W0BK8-06 12 7 x 0.488 0.64 2.03 25.2 2.0 29.2 1.65 32.7 2102
04312 0424-16P16AWG-W0BK8-06 16 7 x 0.488 0.64 2.03 28.4 2.0 32.4 1.65 35.9 2471
04313 0424-20P16AWG-W0BK8-06 20 7 x 0.488 0.64 2.03 31.2 2.0 35.2 1.65 38.7 2807
04314 0424-24P16AWG-W0BK8-06 24 7 x 0.488 0.64 2.03 33.8 2.0 37.8 1.65 41.3 3136

INDIVIDUAL & OVERALL SHIELDED TRIADS
SIZE Order Triads Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Weight
Thick. O.D. Dia O.D. Thick. O.D.
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
04315 0424-02T18AWG-W0BK8-06 2 7 x 0.386 0.64 1.52 15.0 1.25 17.5 1.65 21.0 755
9
.
04316 0424-04T18AWG-W0BK8-06 4 7 x 0.386 0.64 1.52 16.8 1.25 13 1.65 22.8 922
04317 0424-06T18AWG-W0BK8-06 6 7 x 0.386 0.64 2.03 22.2 1.6 25.4 1.65 28.9 1455
18 04318 0424-08T18AWG-W0BK8-06 8 7 x 0.386 0.64 2.03 23.4 2.0 27.4 1.65 30.9 1798
04319 0424-10T18AWG-W0BK8-06 10 7 x 0.386 0.64 2.03 25.7 2.0 29.7 1.65 33.2 2031
04320 0424-12T18AWG-W0BK8-06 12 7 x 0.386 0.64 2.03 27.7 2.0 31.7 1.65 35.2 2234
04321 0424-16T18AWG-W0BK8-06 16 7 x 0.386 0.64 2.03 31.3 2.0 35.3 1.65 38.8 2604
04322 0424-20T18AWG-W0BK8-06 20 7 x 0.386 0.64 2.03 34.4 2.0 38.4 2.03 42.7 3041
SIZE Order Triads Strands X Ins. Inner Inner Armour Armour Outer Outer Approx
Jacket Jacket Wire Wire Jacket Jacket
MESC Code Dia. thick. Weight
Thick. O.D. Dia O.D. Thick. O.D.
(AWG) No. No. No. X mm mm mm mm mm mm mm mm Kg/Km
04323 0424-02T16AWG-W0BK8-06 2 7 x 0.488 0.64 1.52 16.3 1.25 18.8 1.65 22.3 849
04324 0424-04T16AWG-W0BK8-06 4 7 x 0.488 0.64 1.52 18.3 1.6 21.5 1.65 25.0 1208
04325 0424-06T16AWG-W0BK8-06 6 7 x 0.488 0.64 2.03 24.2 2.0 28.2 1.65 31.7 1895
16 04326 0424-08T16AWG-W0BK8-06 8 7 x 0.488 0.64 2.03 25.6 2.0 29.6 1.65 33.1 2095
04327 0424-10T16AWG-W0BK8-06 10 7 x 0.488 0.64 2.03 28.0 2.0 32.0 1.65 35.5 2344
04328 0424-12T16AWG-W0BK8-06 12 7 x 0.488 0.64 2.03 30.3 2.0 34.3 1.65 37.8 2588
04329 0424-16T16AWG-W0BK8-06 16 7 x 0.488 0.64 2.03 34.3 2.0 38.3 2.03 42.5 3141
