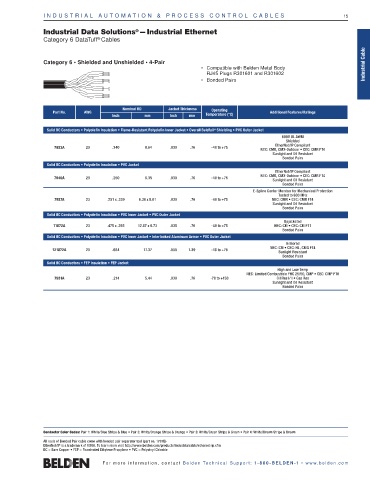

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 15

®
Industrial Data Solutions — Industrial Ethernet
®
Category 6 DataTuff Cables
Industrial Cable
Category 6 • Shielded and Unshielded • 4-Pair
• Compatible with Belden Metal Body
RJ45 Plugs R301601 and R301602
• Bonded Pairs

Nominal OD Jacket Thickness Operating
Part No. AWG Additional Features/Ratings
Inch mm Inch mm Temperature (°C)
Solid BC Conductors • Polyolefin Insulation • Flame-Resistant Polyolefin Inner Jacket • Overall Beldfoil ® Shielding • PVC Outer Jacket
600V UL AWM
Shielded
EtherNet/IP Compliant
7953A 23 .340 8.64 .030 .76 -40 to +75
NEC: CMR, CMX-Outdoor • CEC: CMR FT4
Sunlight and Oil Resistant
Bonded Pairs
Solid BC Conductors • Polyolefin Insulation • PVC Jacket
EtherNet/IP Compliant
NEC: CMR, CMX-Outdoor • CEC: CMR FT4
7940A 23 .250 6.35 .030 .76 -40 to +75
Sunlight and Oil Resistant
Bonded Pairs
E-Spline Center Member for Mechanical Protection
Tested to 600 MHz
7927A 23 .251 x .339 6.38 x 8.61 .030 .76 -40 to +75 NEC: CMR • CEC: CMR FT4
Sunlight and Oil Resistant
Bonded Pairs
Solid BC Conductors • Polyolefin Insulation • PVC Inner Jacket • PVC Outer Jacket
Upjacketed
11872A 23 .475 x .265 12.07 x 6.73 .035 .76 -40 to +75 NEC: CM • CEC: CM FT1
Bonded Pairs
Solid BC Conductors • Polyolefin Insulation • PVC Inner Jacket • Interlocked Aluminum Armor • PVC Outer Jacket
Armored
NEC: CM • CEC: HL, CMG FT4
121872A 23 .684 17.37 .055 1.39 -40 to +75
Sunlight Resistant
Bonded Pairs
Solid BC Conductors • FEP Insulation • FEP Jacket
High and Low Temp
NEC: Limited Combustible FHC 25/50, CMP • CEC: CMP FT6
7931A 23 .214 5.44 .030 .76 -70 to +150 Oil Res I/II • Gas Res
Sunlight and Oil Resistant
Bonded Pairs

Conductor Color Codes: Pair 1: White/Blue Stripe & Blue • Pair 2: White/Orange Stripe & Orange • Pair 3: White/Green Stripe & Green • Pair 4: White/Brown Stripe & Brown
All reels of Bonded Pair cable come with bonded pair separator tool (part no. 1797B)
EtherNet/IP is a trademark of ODVA. To learn more visit http://www.belden.com/products/industrialcable/ethernet-ip.cfm
BC = Bare Copper • FEP = Fluorinated Ethylene Propylene • PVC = Polyvinyl Chloride
