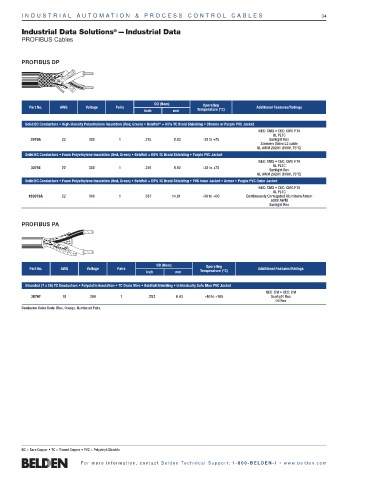

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 34

®
Industrial Data Solutions — Industrial Data
PROFIBUS Cables

PROFIBUS DP

OD (Nom) Operating
Part No. AWG Voltage Pairs Additional Features/Ratings
Inch mm Temperature (°C)
Solid BC Conductors • High-Density Polyethylene Insulation (Red, Green) • Beldfoil ® + 65% TC Braid Shielding • Chrome or Purple PVC Jacket
NEC: CMG • CEC: CMG FT4
UL PLTC
3079A 22 300 1 .315 8.92 -30 to +75 Sunlight Res
Siemens Sinec L2 cable
UL AWM 20201 (600V, 75°C)
Solid BC Conductors • Foam Polyethylene Insulation (Red, Green) • Beldfoil + 65% TC Braid Shielding • Purple PVC Jacket
NEC: CMG • CEC: CMG FT4
UL PLTC
3079E 22 300 1 .315 8.92 -30 to +75
Sunlight Res
UL AWM 20201 (600V, 75°C)
Solid BC Conductors • Foam Polyethylene Insulation (Red, Green) • Beldfoil + 65% TC Braid Shielding • PVC Inner Jacket • Armor • Purple PVC Outer Jacket
NEC: CMG • CEC: CMG FT4
UL PLTC
183079A 22 300 1 .587 14.91 -30 to +60 Continuously Corrugated Aluminum Armor
600V AWM
Sunlight Res

PROFIBUS PA

OD (Nom) Operating
Part No. AWG Voltage Pairs Additional Features/Ratings
Inch mm Temperature (°C)

Stranded (7 x 26) TC Conductors • Polyolefin Insulation • TC Drain Wire • Beldfoil Shielding • Intrinsically Safe Blue PVC Jacket
NEC: CM • CEC: CM
3076F 18 300 1 .253 6.43 -40 to +105 Sunlight Res
Oil Res
Conductor Color Code: Blue, Orange, Numbered Pairs.

BC = Bare Copper • TC = Tinned Copper • PVC = Polyvinyl Chloride
