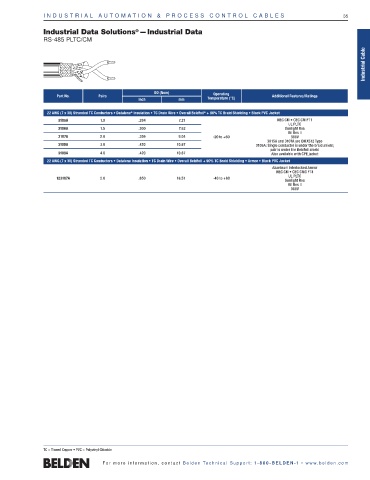

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 35

®
Industrial Data Solutions — Industrial Data
RS-485 PLTC/CM
Industrial Cable

OD (Nom) Operating
Part No. Pairs Temperature (°C) Additional Features/Ratings
Inch mm
22 AWG (7 x 30) Stranded TC Conductors • Datalene ® Insulation • TC Drain Wire • Overall Beldfoil ® + 90% TC Braid Shielding • Black PVC Jacket
3105A 1.0 .284 7.21 NEC CM • CEC CM FT1
UL PLTC
3106A 1.5 .300 7.62 Sunlight Res
Oil Res II
3107A 2.0 .356 9.04 -20 to +60 300V
3015A and 3107A are DMX512 Type
3108A 3.0 .420 10.67 3106A: Single conductor is under the braid shield;
pair is under the Beldfoil shield
3109A 4.0 .420 10.67 Also available with CPE jacket
22 AWG (7 x 30) Stranded TC Conductors • Datalene Insulation • TC Drain Wire • Overall Beldfoil + 90% TC Braid Shielding • Armor • Black PVC Jacket
Aluminum Interlocked Armor
NEC CM • CEC CMG FT4
UL PLTC
123107A 2.0 .650 16.51 -40 to +60
Sunlight Res
Oil Res II
300V

TC = Tinned Copper • PVC = Polyvinyl Chloride

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
