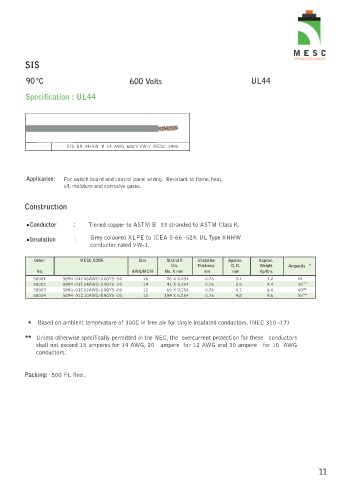

Page 15 - Power Cables Catalogue.pdf

SIS

9 0 C º 600 Volts U L 4 4

Specification : UL44

SIS OR XHHW # 14 AWG 600 V VW-1 MESC 2005

Application: For switch board and control panel wiring. Resistant to flame, heat,
oil, moisture and corrosive gases.

Construction

Conductor : Tinned copper to ASTM B 33 stranded to ASTM Class K.

Insulation : Grey coloured XLPE to ICEA S-66 -524. UL Type XHHW
conductor rated VW-1.

Order MESC CODE Size Strand X Insulation Approx. Approx.
Dia. Thickness O. D. Weight Ampacity *
No. AWG/MCM No. X mm mm mm Kg/Km.
58001 5894 -01C16AWG-U0GY5 -00 16 26 X 0.254 0.76 3.1 3.2 24
58002 5894 -01C14AWG-U0GY5 -00 14 41 X 0.254 0.76 3.5 4.4 35 **
58003 5894 -01C12AWG-U0GY5 -00 12 65 X 0.254 0.76 4.1 6.4 40* *
58004 5894- 01C10AWG-U0GY5 -00 10 104 X 0.254 0.76 4.8 9.6 55**

* Based on ambient temperature of 30ûC in free air for single insulated conductors. (NEC 310 -17)

the overcurrent protection for these conductors
* * Unless otherwise specifically permitted in the NEC,

shall not exceed 15 amperes for 14 AWG, 20 ampere for 12 AWG and 30 ampere for 10 AWG
conductors.
Packing: 500 Ft. Reel.
