TECHNICAL INFORMATION

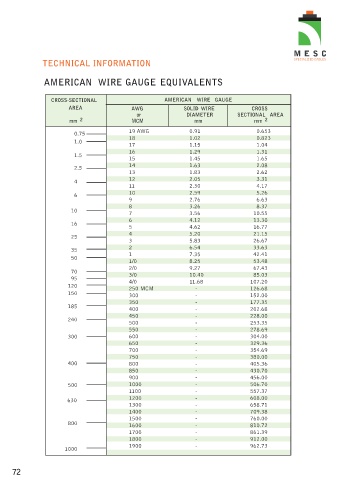

AMERICAN WIRE GAUGE EQUIVALENTS
CROSS-SECTIONAL AMERICAN WIRE GAUGE
AREA AWG SOLID WIRE CROSS
or DIAMETER SECTIONAL AREA
mm 2 MCM mm mm 2
19 AWG 0.91 0.653
0.75
18 1.02 0.823
1.0
17 1.15 1.04
16 1.29 1.31
1.5
15 1.45 1.65
14 1.63 2.08
2.5
13 1.83 2.62
12 2.05 3.31
4
11 2.30 4.17
10 2.59 5.26
6
9 2.76 6.63
8 3.26 8.37
10
7 3.56 10.55
6 4.12 13.30
16
5 4.62 16.77
4 5.20 21.15
25
3 5.83 26.67
2 6.54 33.63
35
1 7.35 42.41
50
1/0 8.25 53.48
2/0 9.27 67.43
70
3/0 10.40 85.03
95
4/0 11.68 107.20
120
250 MCM - 126.68
150
300 - 152.00
350 - 177.35
185
400 - 202.68
450 - 228.00
240
500 - 253.35
550 - 278.69
300 600 - 304.00
650 - 329.36
700 - 354.69
750 - 380.00
400 800 - 405.36
850 - 430.70
900 - 456.00
500 1000 - 506.70
1100 - 557.37
1200 - 608.00
63
630
0
1300 - 658.71
1400 - 709.38
1500 - 760.00
800
1600 - 810.72
1700 - 861.39
1800 - 912.00
1900 - 962.73
1000
