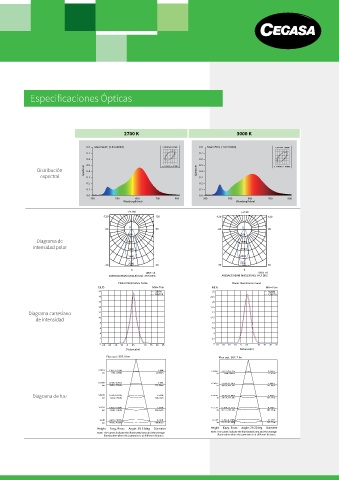

Especificaciones Ópticas

2700 K 3000 K

0.8 Max=9249 [1.0=20000] 3.50SDCM F2700K 0.8 Max=7010 [1.0=20000] 2.56SDCM F3000K
0.7 0.7
0.6 0.6

Distribución Spectrum 0.5 x=0.4464 y=0.4049 Spectrum 0.5 x=0.4410 y=0.4085
0.4
0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120

0 0
-90 90 -90 90
400 500
Diagrama de 800 1000
intensidad polar 1200 1500
1600 2000
2000 2500
-30 30 -30 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 39.6 DEG AVERAGE BEAM ANGLE(50%): 39.7 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
20 C0/180 25 C0/180
C90/270 C90/270
18 22.5
16 20
14 17.5
Diagrama cartesiano 12 15
de intensidad 10 12.5
8 10
6 7.5
4 5
2 2.5
0 0
-25- 20 -15- 10 -5 05 10 15 20 25 -25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 307.9 lm Flux out: 602.7 lm

3.281ft 110.7, 175.6fc 1.84ft
1m 1192, 1890lx 56.09cm
6.562ft 27.68, 43.91fc 3.68ft
2m 298.0, 472.6lx 112.18cm
Diagrama de haz 9.843ft 12.30, 19.51fc 168.27cm
5.521ft
3m
132.4, 210.0lx
13.12ft 6.920, 10.98fc 7.361ft
4m 74.49, 118.2lx 224.36cm
16.4ft 4.429, 7.025fc 9.201ft
5m 47.67, 75.62lx 200.45cm
Height Eavg, Emax Angle: 39.33deg Diameter Height Eavg, Emax Angle: 39.32deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
