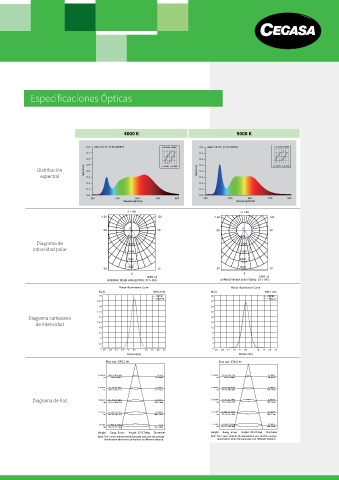

Especificaciones Ópticas

4000 K 5000 K

0.8 Max=6716 [1.0=20000] 4.95SDCM F4000K 0.8 Max=10116 [1.0=20000] 1.21 SDCM F5000K
0.7 0.7
0.6 0.6
0.5 x=0.3903 y=0.3909 0.5 x=0.3471 y=0.3580
Distribución Spectrum 0.4 Spectrum 0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120

0 0
-90 90 -90 90
500 600
Diagrama de 1000 1200
intensidad polar
1500 1800
2000 2400
2500 3000
-30 30 -30 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 37.5 DEG AVERAGE BEAM ANGLE(50%): 39.1 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
25 C0/180 30 C0/180
C90/270 C90/270
22.5 27
20 24
17.5 21
Diagrama cartesiano 15 18
de intensidad 12.5 15
10 12
7.5 9
5 6
2.5 3
0 -25- 20 -15- 10 -5 05 10 15 20 25 0 -25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 548.2 lm Flux out: 678.6 lm

Diagrama de haz

Height Eavg, Emax Angle: 37.07deg Diameter Height Eavg, Emax Angle: 38.61deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
