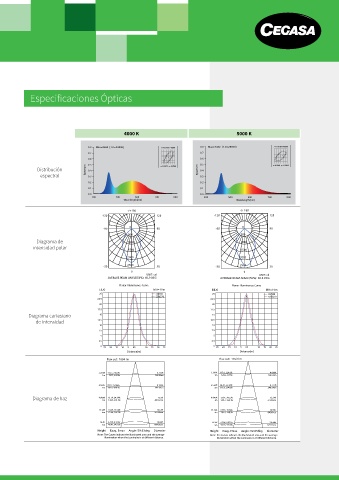

Especificaciones Ópticas

4000 K 5000 K

0.8 Max=8694 [1.0=20000] 2.05SDCM F4000K 0.8 Max=7432 [1.0=20000] 2.12SDCM F5000K
0.7 0.7
0.6 0.6
0.5 x=0.3473 y=0.3564 0.5 x=0.3841 y=0.3816
Distribución Spectrum 0.4 Spectrum 0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120
0 0
-90 90 -90 90
500 500
Diagrama de 1000 1000
intensidad polar 1500 1500
2000 2000
-30 2500 30 -30 2500 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 60.9 DEG AVERAGE BEAM ANGLE(50%): 60.4 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
25 C0/180 25 C0/180
C90/270 C90/270
22.5 22.5
20 20
17.5 17.5
Diagrama cartesiano 15 15
de intensidad 12.5 12.5
10 10
7.5 7.5
5 5
2.5 2.5
0 0
-25- 20 -15- 10 -5 05 10 15 20 25 -25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 1604 lm Flux out: 1553 lm

3.281ft 112.5, 218.6fc 4.166ft 3.281ft 117.6, 220.8fc 4.089ft
1m 1211, 2363lx 126.99cm 1m 1266, 2377lx 124.62cm
6.562ft 28.12, 54.66fc 8.333ft 6.562ft 29.41, 55.20fc 8.177ft
2m 302.6, 588.3lx 253.98cm 2m 316.6, 594.2lx 249.24cm
Diagrama de haz 9.843ft 3m 12.50, 24.29fc 380.97cm 9.843ft 13.07, 24.53fc 373.86cm
12.5ft
12.27ft
140.7, 264.1lx
3m
134.5, 261.5lx
13.12ft 7.029, 13.66fc 16.67ft 13.12ft 7.363, 13.80fc 16.35ft
4m 75.66, 147.1lx 507.96cm 4m 79.14, 148.5lx 498.48cm
16.4ft 4.498, 8.745fc 20.83ft 16.4ft 4.706, 8.832fc 20.44ft
5m 48.42, 94.13lx 634.95cm 5m 50.65, 95.07lx 623.10cm
Height Eavg, Emax Angle: 59.83deg Diameter Height Eavg, Emax Angle: 62.85deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
