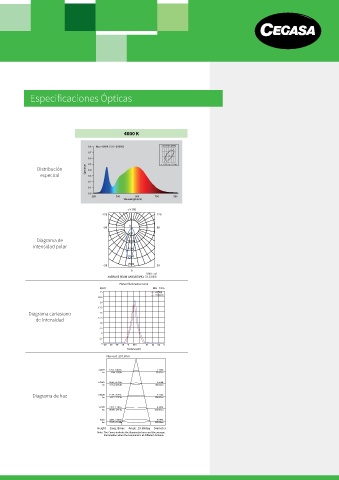

Especificaciones Ópticas

4000 K

0.8 Max=8699 [1.0=20000] 2.05SDCM F4000K
0.7
0.6
Distribución Spectrum 0.5 x=0.3473 y=0.3564
0.4
espectral 0.3
0.2
0.1
0.0
380 500 600 700 800
Wavelength(nm)
-/+180
-120 120
0
-90 90
500
Diagrama de 1000
intensidad polar
1500
2000
-30 2500 30
0
UNIT: cd
AVERAGE BEAM ANGLE(50%): 31.5 DEG
Planar Illuminance Curve
E(LX) MH=10m
25 C0/180
C90/270
22.5
20
17.5
Diagrama cartesiano 15
de intensidad 12.5
10
7.5
5
2.5
0 -25- 20 -15- 10 -5 051 01 52 02 5
Distance(m)
Flux out: 291.8 lm

3.281ft 120.2, 188.9fc 1.739ft
1m 1294, 2033lx 53.02cm
6.562ft 30.05, 47.23fc 3.479ft
2m 323.4, 508.4lx 106.03cm
Diagrama de haz 9.843ft 13.35, 20.99fc 159.05cm
5.218ft
3m
143.7, 225.9lx
13.12ft 7.512, 11.81fc 6.957ft
4m 80.86, 127.1lx 212.06cm
16.4ft 4.807, 7.556fc 8.697ft
5m 51.75, 81.34lx 265.08cm
Height Eavg, Emax Angle: 29.69deg Diameter
Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance.
