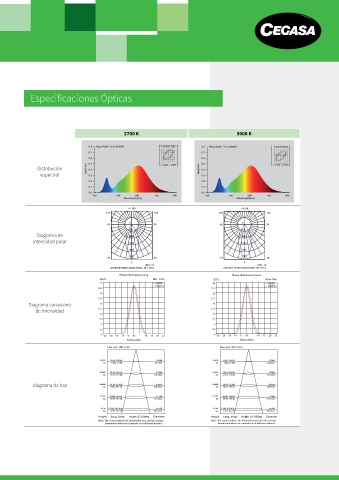

Especificaciones Ópticas

2700 K 3000 K

0.8 Max=9249 [1.0=20000] 3.50SDCM F2700K 0.8 Max=9249 [1.0=20000] 2.12SDCM F3000K
0.7 0.7
0.6 0.6
Distribución Spectrum 0.5 x=0.4464 y=0.4049 Spectrum 0.5 x=0.3841 y=0.3816
0.4
0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120
0 0
-90 90 -90 90
500 500
Diagrama de 1000 1000
intensidad polar 1500 1500
2000 2000
-30 2500 30 -30 2500 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 48.1 DEG AVERAGE BEAM ANGLE(50%): 48.1 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
25 C0/180 25 C0/180
C90/270 C90/270
22.5 22.5
20 20
17.5 17.5
Diagrama cartesiano 15 15
de intensidad 12.5 12.5
10 10
7.5 7.5
5 5
2.5 2.5
0 -25- 20 -15- 10 -5 05 10 15 20 25 0 -25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 901.5 lm Flux out: 901.5 lm

3.281ft 134.5, 215.5fc 2.898ft 3.281ft 134.5, 215.5fc 2.898ft
1m 1448, 2319lx 88.32cm 1m 1448, 2319lx 88.32cm
6.562ft 33.62, 53.87fc 5.795ft 6.562ft 33.62, 53.87fc 5.795ft
2m 361.9, 579.8lx 176.64cm 2m 361.9, 579.8lx 176.64cm
Diagrama de haz 9.843ft 14.94, 23.94fc 264.96cm 9.843ft 3m 14.94, 23.94fc 264.96cm
8.693ft
8.693ft
3m
160.8, 257.7lx
160.8, 257.7lx
13.12ft 8.406, 13.47fc 11.59ft 13.12ft 8.406, 13.47fc 11.59ft
4m 90.48, 145.0lx 353.29cm 4m 90.48, 145.0lx 353.29cm
16.4ft 5.380, 0.8.619fc 14.49ft 16.4ft 5.380, 0.8.619fc 14.49ft
5m 57.91, 92.77lx 441.61cm 5m 57.91, 92.77lx 441.61cm
Height Eavg, Emax Angle: 47.66deg Diameter Height Eavg, Emax Angle: 47.66deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
