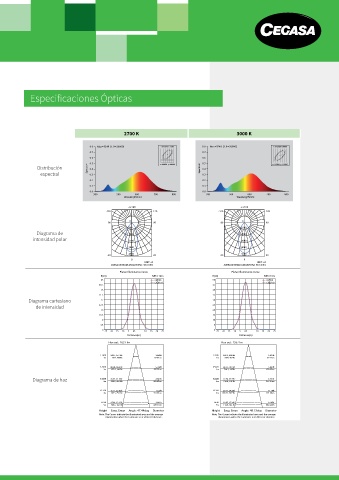

Especificaciones Ópticas

2700 K 3000 K

0.8 Max=9249 [1.0=20000] 3.50SDCM F2700K 0.8 Max=9249 [1.0=20000] 2.12SDCM F3000K
0.7 0.7
0.6 0.6
Distribución Spectrum 0.5 x=0.4464 y=0.4049 Spectrum 0.5 x=0.3841 y=0.3816
0.4
0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120
0 0
-90 90 -90 90
900 1000
Diagrama de 1800 2000
intensidad polar 2700 3000
3600 4000
4500 5000
-30 30 -30 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 48.0 DEG AVERAGE BEAM ANGLE(50%): 48.3 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
45 C0/180 50 C0/180
C90/270 C90/270
40.5 45
36 40
31.5 35
Diagrama cartesiano 27 30
de intensidad 22.5 25
18 20
13.5 15
9 10
4.5 5
0 -25- 20 -15- 10 -5 05 10 15 20 25 0 -25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 1627 lm Flux out: 1957 lm

3.281ft 242.7, 377.9fc 2.883ft 3.281ft 266.2, 429.9fc 2.931ft
1m 2613, 4068lx 87.87cm 1m 2865, 4627lx 89.32cm
6.562ft 60.68, 94.47fc 5.766ft 6.562ft 66.55, 107.5fc 5.861ft
2m 653.2, 1017lx 175.75cm 2m 716.3, 1157lx 178.65cm
Diagrama de haz 9.843ft 26.97, 41.99fc 263.62cm 9.843ft 3m 29.58, 47.77fc 267.97cm
8.792ft
8.649ft
318.4, 514.2lx
3m
290.3, 452.0lx
13.12ft 15.17, 23.62fc 11.53ft 13.12ft 20.11, 24.32fc 11.19ft
4m 163.3, 254.2lx 351.49cm 4m 699.71, 302.5lx 327.98cm
16.4ft 9.709, 15.12fc 14.41ft 16.4ft 10.65, 17.20fc 14.65ft
5m 104.5, 162.7lx 439.37cm 5m 114.6, 185.1lx 446.62cm
Height Eavg, Emax Angle: 47.44deg Diameter Height Eavg, Emax Angle: 48.13deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
