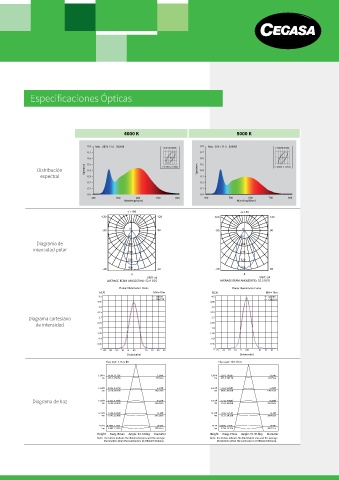

Especificaciones Ópticas

4000 K 5000 K

0.8 Max=8874 [1.0=20000] 1.83SDCM F4000K 0.8 Max=8141 [1.0=20000] 1.41SDCM F5000K
0.7 0.7
0.6 0.6

Distribución Spectrum 0.5 x=0.3784 y=0.3803 Spectrum 0.5 x=0.3434 y=0.3558
0.4
0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120

0 0
-90 90 -90 90
80 80
Diagrama de 160 160
intensidad polar 240 240
320 320
400 400
-30 30 -30 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 52.9 DEG AVERAGE BEAM ANGLE(50%): 52.3 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
4.5 C0/180 4.5 C0/180
C90/270 C90/270
4.05 4.05
3.6 3.6
3.15 3.15
Diagrama cartesiano 2.7 2.7
de intensidad 2.25 2.25
1.8 1.8
1.35 1.35
0.9 0.9
0.45 0.45
0 0 -25- 20 -15- 10 -5 051 01 52 02 5
-25- 20 -15- 10 -5 05 10 15 20 25
Distance(m) Distance(m)
Flux out: 175.5 lm Flux out: 181.9 lm

3.281ft 19.99, 33.32fc 3.209ft 3.281ft 22.61, 36.02fc 3.194ft
1m 215.1, 358.7lx 97.81cm 1m 243.4, 387.7lx 97.35cm
6.562ft 4.996, 8.331fc 6.418ft 6.562ft 5.653, 9.004fc 6.388ft
2m 53.78, 89.67lx 195.61cm 2m 60.85, 96.92lx 194.71cm
Diagrama de haz 6.562ft 2.221, 3.703fc 293.42cm 6.562ft 3m 2.512, 4.002fc 292.06cm
9.627ft
9.582ft
27.04, 43.08lx
3m
23.90, 39.85lx
13.12ft 1.249, 2.083fc 12.84ft 13.12ft 1.413, 2.251fc 12.78ft
4m 13.45, 22.42lx 391.23cm 4m 15.21, 24.23lx 389.42cm
16.4ft 0.7994, 1.333fc 16.04ft 16.4ft 0.9045, 1.441fc 15.97ft
5m 8.605, 14.35lx 489.04cm 5m 9.736, 15.51lx 486.77cm
Height Eavg, Emax Angle: 52.12deg Diameter Height Eavg, Emax Angle: 51.91deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
