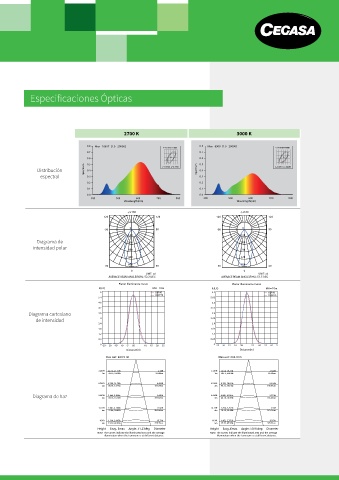

Page 296 - Catalogo Iluminacion Vial

Especificaciones Ópticas

2700 K 3000 K

0.8 Max=10617 [1.0=20000] 0.8 Max=6900 [1.0=20000]
4.45SDCM F2700K 5.29SDCM F3000K
0.7 0.7
0.6 0.6
Distribución Spectrum 0.5 x=0.4586 y=0.4190 Spectrum 0.5 x=0.4391 y=0.4062
0.4
0.4
espectral 0.3 0.3
0.2 0.2
0.1 0.1
0.0 0.0
380 500 600 700 800 380 500 600 700 800
Wavelength(nm) Wavelength(nm)
-/+180 -/+180
-120 120 -120 120

-90 0 90 -90 0 90
120 130
Diagrama de 240 260
intensidad polar 360 390
480 520
-30 600 30 -30 650 30
0 0
UNIT: cd UNIT: cd
AVERAGE BEAM ANGLE(50%): 52.2 DEG AVERAGE BEAM ANGLE(50%): 51.5 DEG
Planar Illuminance Curve Planar Illuminance Curve
E(LX) MH=10m E(LX) MH=10m
6 C0/180 6.5 C0/180
C90/270 C90/270
5.4 5.85
4.8 5.2
4.2 4.55
Diagrama cartesiano 3.6 3.9
de intensidad 3 3.25
2.4 2.6
1.8 1.95
1.2 1.3
0.6 0.65
0 -25- 20 -15- 10 -5 05 10 15 20 25 0 -25- 20- 15 -10- 50 51 01 52 02 5
Distance(m) Distance(m)
Flux out: 263.5 lm Flux out: 293.9 lm

3.281ft 32.76, 51.17fc 3.14ft 3.281ft 36.54, 59.31fc 3.126ft
1m 352.6, 550.8lx 95.89cm 1m 393.3, 638.4lx 95.29cm
6.562ft 8.190, 12.79fc 6.292ft 6.562ft 9.135, 14.83fc 6.252ft
2m 88.15, 137.7lx 191.78cm 2m 98.33, 159.6lx 190.57cm
Diagrama de haz 9.843ft 3.640, 5.686fc 287.67cm 9.843ft 4.060, 6.590fc 285.86cm
9.379ft
9.438ft
39.18, 61.20lx
3m
43.70, 70.93lx
3m
13.12ft 2.047, 3.198fc 12.58ft 13.12ft 2.284, 3.707fc 12.5ft
4m 22.04, 34.43lx 383.56cm 4m 24.58, 39.90lx 381.15cm
16.4ft 1.310, 2.047fc 15.73ft 16.4ft 1.462, 2.372fc 15.63ft
5m 14.10, 22.03lx 479.45cm 5m 15.73, 25.54lx 476.43cm
Height Eavg, Emax Angle: 51.23deg Diameter Height Eavg, Emax Angle: 50.95deg Diameter
Note: The Curves indicate the illuminated area and the average Note: The Curves indicate the illuminated area and the average
illumination when the Luminaire is at different distance. illumination when the Luminaire is at different distance.
