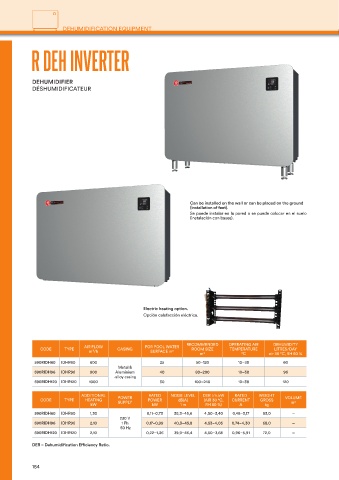

Page 154 - Catalogue IML-VP 2024

DEHUMIDIFICATION EQUIPMENT

R DEH INVERTER

DEHUMIDIFIER
DÉSHUMIDIFICATEUR

Can be installed on the wall or can be placed on the ground
(installation of feet).
Se puede instalar en la pared o se puede colocar en el suelo
(instalación con bases).

Electric heating option.
Opción calefacción eléctrica.

RECOMMENDED OPERATING AIR DEHUMIDITY
AIR FLOW FOR POOL WATER
CODE TYPE CASING ROOM SIZE TEMPERATURE LITRES/DAY
m³/h SURFACE m2
m2 °C air 30 °C, RH 80 %
590RIDH60 IDHR60 600 25 50–120 10–38 60
Metal &
590RIDH96 IDHR96 800 Aluminium 40 80–200 10–38 96
-alloy casing
590RIDH120 IDHR120 1000 50 100–240 10–38 120
ADDITIONAL RATED NOISE LEVEL DER l/h.kW RATED WEIGHT
CODE TYPE HEATING POWER POWER dB(A) (AIR 30 °C, CURRENT GROSS VOLUME
m3
SUPPLY
kW kW 1 m RH 80 %) A kg
590RIDH60 IDHR60 1,30 0,11–0,73 38,3–45,6 4,00–3,40 0,48–3,17 53,0 –
230 V
590RIDH96 IDHR96 2,10 1 Ph 0,17–0,99 40,3–45,8 4,53–4,05 0,74–4,30 68,0 –
50 Hz
590RIDH120 IDHR120 2,10 0,22–1,36 39,9–46,4 4,50–3,68 0,96–5,91 72,0 –
DER – Dehumidification Efficiency Ratio.

154
