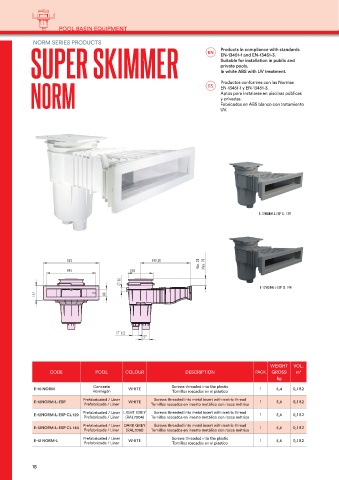

Page 18 - Catalogue IML-VP 2024
P. 18
POOL BASIN EQUIPMENT
SUPER SKIMMER EN Products in compliance with standards
NORM SERIES PRODUCTS
EN-13451-1 and EN-13451-3.
Suitable for installation in public and
private pools.
In white ABS with UV treatment.
NORM ES Productos conformes con las Normas
EN-13451-1 y EN-13451-3.
Aptos para instalarse en piscinas públicas
y privadas.
Fabricados en ABS blanco con tratamiento
UV.
E-12NORM-L-ESP CL 129
E-12NORM-L-ESP CL 144
WEIGHT VOL.
CODE POOL COLOUR DESCRIPTION PACK. GROSS m³
kg
E-10 NORM Concrete WHITE Screws threaded into the plastic 1 5,4 0,182
Hormigón Tornillos roscados en el plástico
Prefabricated / Liner Screws threaded into metal insert with metric thread
E-12NORM-L-ESP WHITE 1 5,6 0,182
Prefabricada / Liner Tornillos roscados en inserto metálico con rosca métrica
Prefabricated / Liner LIGHT GREY Screws threaded into metal insert with metric thread
E-12NORM-L-ESP CL 129 1 5,6 0,182
Prefabricada / Liner (RAL7004) Tornillos roscados en inserto metálico con rosca métrica
Prefabricated / Liner DARK GREY Screws threaded into metal insert with metric thread
E-12NORM-L-ESP CL 144 1 5,6 0,182
Prefabricada / Liner (RAL7016) Tornillos roscados en inserto metálico con rosca métrica
Prefabricated / Liner Screws threaded into the plastic
E-12 NORM-L WHITE 1 5,6 0,182
Prefabricada / Liner Tornillos roscados en el plástico
18
