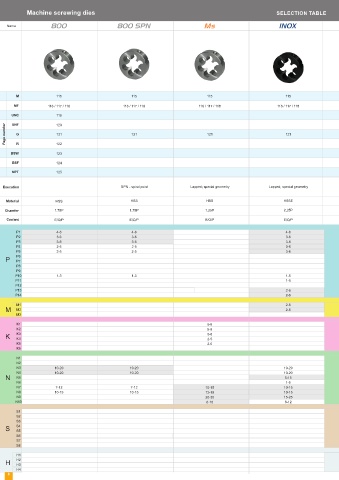

Machine screwing dies SELECTION TABLE

Name 800 800 SPN Ms INOX

M 115 115 115 115

MF 116 / 117 / 118 116 / 117 / 118 116 / 117 / 118 116 / 117 / 118

UNC 119
UNF
Page number G 120 121 121 121
121
R
BSW 122
123
BSF 124
NPT 125

Execution SPN - spiral point Lapped; special geometry Lapped; special geometry

Material HSS HSS HSS HSSE
Chamfer 1,75P 1,75P 1,25P 2,25P
Coolant E/O/P E/O/P E/O/P E/O/P

P1 4-8 4-8 4-8
P2 3-6 3-6 3-6
P3 3-6 3-6 3-6
P4 2-5 2-5 3-6
P5 2-5 2-5 3-6
P6
P P7
P8
P9
P10 1-3 1-3 1-5
P11 1-5
P12
P13 2-6
P14 2-6
M1 2-6
M M2 2-6
M3
K1 5-8
K2 5-8
K3 5-8
K K4 2-5
K5 2-5
K6
N1
N2
N3 10-20 10-20 10-20
N4 10-20 10-20 10-20
N N5 5-15
N6 1-5
N7 7-12 7-12 10-15 10-15
N8 10-15 10-15 12-18 10-15
N9 20-30 15-25
N10 6-10 8-12
S1
S2
S3
S S4
S5
S6
S7
S8
H1
H2
H H3
H4
