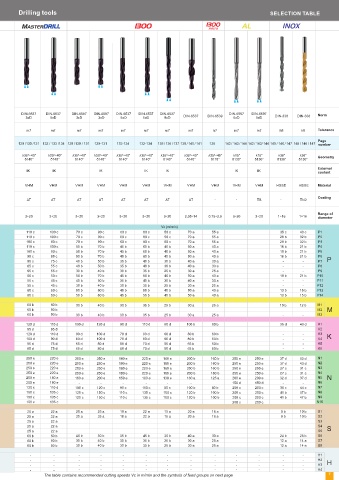

Drilling tools SELECTION TABLE

1300
MASTERDRILL 1300 1300 AL INOX
micro

DIN-6537 DIN-6537 DIN-6597 DIN-6597 DIN-6537 DIN-6537 DIN-6537 DIN-6597 DIN-6597 Norm
3xD 5xD 3xD 3xD 5xD 5xD 8xD DIN-6537 DIN-6539 5xD 5xD DIN-338 DIN-338
m7 m7 m7 m7 m7 m7 m7 m7 h7 m7 m7 h8 h8 Tolerance

Page
129 /130 /131 132 / 133 /134 129 /130 / 131 129-131 132-134 132-134 135 / 136 / 137 139 / 140 / 141 138 142 / 143 / 144 142 / 143/ 144 145 / 146 / 147 145 / 146 / 147 Strona
number
λ35º÷40° λ35º÷40° λ35º÷40° λ35º÷40° λ35º÷40° λ35º÷40° λ35º÷40° λ35º÷40° λ35º÷40° λ15° λ15° λ36° λ36° Geometry
δ140° δ140° δ140° δ140° δ140° δ140° δ140° δ140° δ118° δ130° δ130° δ130° δ130°
External
IK IK IK IK IK IK IK coolant
VHM VHM VHM VHM VHM VHM VHM VHM VHM VHM VHM HSSE HSSE Material

Coating
AT AT AT AT AT AT AT AT - - - TB - TN2

Range of
3÷20 3÷20 3÷20 3÷20 3÷20 3÷20 3÷20 2,35÷14 0,75÷2,9 3÷20 3÷20 1÷16 1÷16
diameter
Vc (m/min)
110 c 100 c 70 c 90 c 60 c 80 c 50 c 70 a 55 a 35 c 40 c P1
110 c 100 c 70 c 90 c 60 c 80 c 50 c 70 a 55 a 28 b 32 b P2
100 c 90 c 70 c 90 c 60 c 80 c 50 c 70 a 55 a 28 b 32 b P3
110 c 100 c 50 b 70 b 45 b 60 b 40 b 50 a 40 a 18 b 21 b P4
100 c 90 c 50 b 70 b 45 b 60 b 40 b 50 a 40 a 18 b 21 b P5
95 c 85 c 50 b 70 b 45 b 60 b 40 b 50 a 40 a 18 b 21 b P6
85 c 75 c 40 b 50 b 35 b 40 b 30 b 40 a 30 a - - P7 P
65 c 55 c 40 b 50 b 35 b 40 b 30 b 40 a 30 a - - P8
65 c 55 c 30 b 40 b 30 b 35 b 25 b 30 a 25 a - - P9
60 c 50 c 50 b 70 b 45 b 60 b 40 b 50 a 40 a 18 b 21 b P10
55 c 45 c 40 b 50 b 35 b 40 b 30 b 40 a 30 a - - P11
55 c 45 c 30 b 40 b 30 b 35 b 25 b 30 a 25 a - - P12
60 c 50 c 50 b 60 b 45 b 55 b 40 b 50 a 40 a 13 b 15 b P13
60 c 50 c 50 b 60 b 45 b 55 b 40 b 50 a 40 a 13 b 15 b P14
30 a
30 b
10 b
10 b 12 b 12 a 30 b 40 b 40 b 35 b 35 b 25 b 25 a 25 a 25 a
8 a
60 b 50 b 30 b 40 b 30 b 35 b 25 b 30 a 25 a 10 b 12 b M1
60 b 50 b M2 M
60 b 50 b 30 b 40 b 30 b 35 b 25 b 30 a 25 a - - M3
120 d 110 d 100 d 120 d 90 d 110 d 80 d 100 b 80 b 35 d 40 d K1
95 d 85 d K2
120 d 110 d 80 d 100 d 70 d 90 d 60 d 80 b 60 b - - K3
100 d 90 d 80 d 100 d 70 d 90 d 60 d 80 b 60 b - - K4 K
85 d 75 d 65 d 80 d 60 d 70 d 50 d 65 b 50 b - - K5
85 d 75 d 65 d 80 d 60 d 70 d 50 d 65 b 50 b - - K6
250 e 220 e 200 e 250 e 180 e 220 e 160 e 200 b 160 b 250 e 250 e 37 d 43 d N1
250 e 220 e 200 e 250 e 180 e 220 e 160 e 200 b 160 b 250 e 250 e 37 d 43 d N2
250 e 220 e 200 e 250 e 180 e 220 e 160 e 200 b 160 b 250 e 250 e 27 c 31 c N3
250 e 220 e 200 e 250 e 180 e 220 e 160 e 200 b 160 b 250 e 250 e 27 c 31 c N4
200 e 180 e 160 e 200 e 150 e 180 e 130 e 160 a 125 a 200 e 200 e 32 d 37 d N5 N
200 e 180 e - - - - - - 150 d 150 d - - N6
120 c 110 d 100 c 120 c 90 c 110 c 80 c 100 b 80 b 200 c 200 c 38 c 44 c N7
150 c 135 c 120 c 150 c 110 c 135 c 100 c 120 b 100 b 200 c 200 c 41 b 47 b N8
150 c 135 c 120 c 150 c 110 c 135 c 100 c 120 b 100 b 200 c 200 c 41 b 47 b N9
150 c 135 c 200 c 200 c N10
25 a 22 a 20 a 25 a 18 a 22 a 15 a 20 a 16 a 9 b 10 b S1
25 a 22 a 20 a 25 a 18 a 22 a 15 a 20 a 16 a 9 b 10 b S2
25 a 22 a S3
25 a 22 a S4
25 a 22 a S5 S
60 b 50 b 40 b 50 b 35 b 45 b 30 b 40 a 30 a 24 b 28 b S6
60 b 50 b 30 b 40 b 30 b 35 b 25 b 30 a 25 a 12 a 14 a S7
60 b 50 b 30 b 40 b 30 b 35 b 25 b 30 a 25 a 12 a 14 a S8

- - - - - - - - - - - - - H1
- - - - - - - - - - - - - H2
- - - - - - - - - - - - - H3 H
- - - - - - - - - - - - - H4
The table contains recommended cutting speeds Vc in m/min and the symbols of feed groups on next page 7
