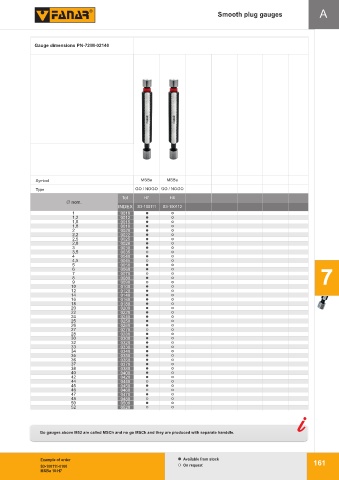

Smooth plug gauges A

Gauge dimensions PN-72/M-02140

Symbol MSBa MSBa
Type GO / NOGO GO / NOGO
Tolerance Tol H7 H8
Ć nom.
INDEX S3-100111 S3-100112
1 0010
1,2 0012
1,5 0015
1,8 0018
2 0020
2,2 0022
2,5 0025
2,8 0028
3 0030
3,5 0035
4 0040
4,5 0045
5 0050
6 0060
7 0070 6 6
8 0080 7
9 0090
10 0100
12 0120
14 0140
16 0160
18 0180
20 0200
22 0220
24 0240
25 0250
26 0260
27 0270
28 0280
30 0300
32 0320
33 0330
34 0340
35 0350
36 0360
37 0370
38 0380
40 0400
42 0420
44 0440
45 0450
46 0460
47 0470
48 0480
50 0500
52 0520

Go gauges above M52 are called MSCh and no go MSCk and they are produced with separate handdle.

Example of order Available from stock 161
161
S3-100111-0100 On request
MSBa 10-H7
