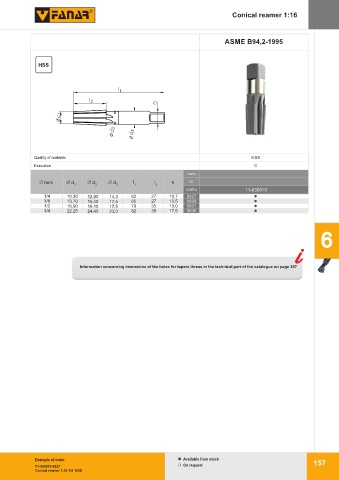

Conical reamer 1:16 WK

ASME B94,2-1995

HSS

Quality of material P M K HSS
Material groups
Execution N S H C
Internal cooling Norm IK
Ć nom
Quality of materialĆ d Ć d Ć d l l a Tol. VHM
1 2 3 1 2
Coating INDEX AT T1-030010
1/4 10,30 12,00 14,3 62 27 10,7 0027
Nakrój / Chamfer
3/8 13,70 15,40 17,5 65 27 13,5 0029
1/2 16,90 19,10 17,5 79 35 13,0 0031
3/4 22,25 24,40 23,0 82 35 17,5 0035

6 6

Information concerning imensioins of the holes for tapere threas in the technical part of the catalogue on page 267
7

Example of order Available from stock 157
T1-030010-0027 On request
Conical reamer 1:16 1/4 HSS
