i Technical Information

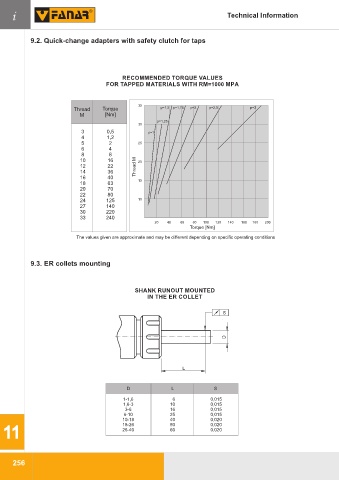

9.2. Quick-change adapters with safety clutch for taps

RECOMMENDED TORQUE VALUES
FOR TAPPED MATERIALS WITH RM=1000 MPA

35
Thread Torque
M [Nm]

30
3 0,5
4 1,2
5 2 25
6 4
8 8
10 16 20
12 22 Thread M
14 36
16 40
15
18 63
20 70
22 80
24 125 10
27 140
30 220
33 240
20 40 60 80 100 120 140 160 180 200
Torque [Nm]

The values given are approximate and may be different depending on specific operating conditions

9.3. ER collets mounting

SHANK RUNOUT MOUNTED
IN THE ER COLLET

S

D

L

D L S
1-1,6 6 0,015
1,6-3 10 0,015
3-6 16 0,015
6-10 25 0,015
10-18 40 0,020
18-26 50 0,020
11 26-40 60 0,020
