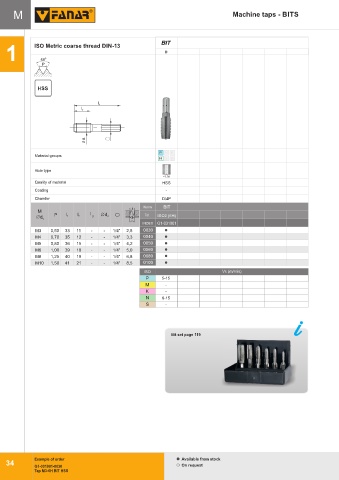

Page 38 - Fanar

M Machine taps - BITS

BIT
ISO Metric coarse thread DIN-13
1 D
0
60
S
E
S
H
HSSE
P
P M
PM
HSS
l 1
l 2

d 1

P M K
Material groups
N S H
Hole type
< 1,5d
Quality of material HSS
Coating -
Chamfer D/4P
Norm BIT
M
P l Tol.
Ćd l 1 l 2 3 Ćd 2 ISO2 (6H)
1
INDEX G1-031001
M3 0,50 33 11 - - 1/4" 2,5 0030
M4 0,70 35 12 - - 1/4" 3,3 0040
M5 0,80 36 15 - - 1/4" 4,2 0050
M6 1,00 39 18 - - 1/4" 5,0 0060
M8 1,25 40 19 - - 1/4" 6,8 0080
M10 1,50 41 21 - - 1/4" 8,5 0100
ISO Vc (m/min)
P 5-15
M -
K -
N 6-15
S -

Bit set page 119

Example of order Available from stock
34
G1-031001-0030 On request
Tap M3-6H BIT HSS
