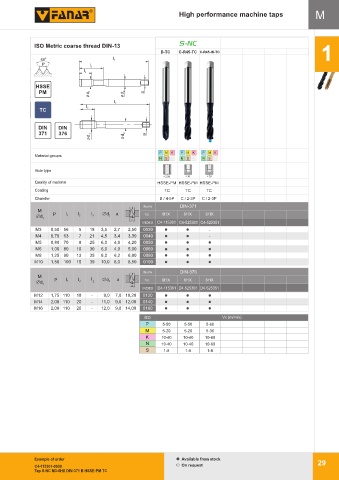

Page 33 - Fanar

High performance machine taps M

S-NC
ISO Metric coarse thread DIN-13
B-TC C-R45-TC C-R45-IK-TC 1
60 0 l 1
S
E
S
HSSE
H
P
PM l 3
P
M
l 2
HSSE
PM d 1 d 2 a
l 1
l 2
TC
TC
DIN DIN
371 376 d 1 d 2 a
P M K P M K P M K
Material groups
N S H N S H N S H
Hole type
< 2,5d < 3d < 3d
Quality of material HSSE-PM HSSE-PM HSSE-PM
Coating TC TC TC
Chamfer B / 4-5P C / 2-3P C / 2-3P
Norm DIN-371
M
Ćd P l 1 l 2 l 3 Ćd 2 a Tol. 6HX 6HX 6HX
1
INDEX C4-115301 C4-525301 C4-525351
M3 0,50 56 5 18 3,5 2,7 2,50 0030 -
M4 0,70 63 7 21 4,5 3,4 3,30 0040 -
M5 0,80 70 8 25 6,0 4,9 4,20 0050
M6 1,00 80 10 30 6,0 4,9 5,00 0060
M8 1,25 90 13 35 8,0 6,2 6,80 0080
M10 1,50 100 15 39 10,0 8,0 8,50 0100
Norm DIN-376
M
P l 1 l 2 l Ćd 2 a a Tol. 6HX 6HX 6HX
Ćd 3
1
INDEX D4-115301 D4-525301 D4-525351
M12 1,75 110 18 - 9,0 7,0 10,20 0120
M14 2,00 110 20 - 11,0 9,0 12,00 0140
M16 2,00 110 20 - 12,0 9,0 14,00 0160
ISO Vc (m/min)
P 5-50 5-50 5-60
M 5-20 5-20 5-30
K 10-40 10-40 10-60
N 10-40 10-40 10-60
S 1-8 1-8 1-8

Example of order Available from stock 29
C4-115301-0030 On request
Tap S-NC M3-6HX DIN-371 B HSSE-PM TC
