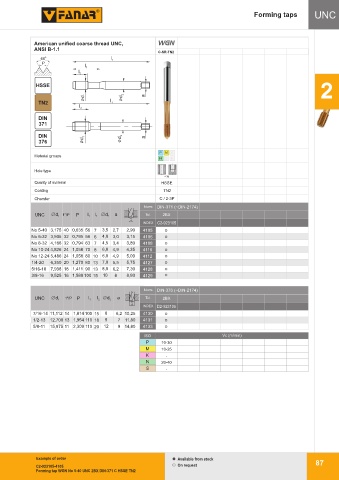

Page 91 - Fanar

Forming taps UNC

American unified coarse thread UNC,
ISO Metric coarse thread DIN-13 WGN
ANSI B-1.1
C-SR-TN2
60 0 l 1
HSSE
S
E
H HSSEHSSE
S
P
P
PM l 3
P PM
M
M
l 2
HSSE 2
d 1 d 2 a
TN2 l 1
l 2
DIN
371
DIN d 1 d 2 a
376
P M K
Material groups
N S H
Hole type
< 3d
Quality of material HSSE
Coating TN2
Chamfer C / 2-3P
Norm DIN-371 (~DIN-2174)
UNC Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol. 2BX
INDEX C2-923105
No 5-40 3,175 40 0,635 56 7 3,5 2,7 2,90 4105
No 6-32 3,505 32 0,795 56 6 4,0 3,0 3,15 4106
No 8-32 4,166 32 0,794 63 7 4,5 3,4 3,80 4108
No 10-24 4,826 24 1,058 70 8 6,0 4,9 4,35 4110
No 12-24 5,486 24 1,058 80 10 6,0 4,9 5,00 4112
1/4-20 6,350 20 1,270 80 13 7,0 5,5 5,75 4127
5/16-18 7,938 18 1,411 90 13 8,0 6,2 7,30 4128
Tolerancja
3/8-16 9,525 16 1,588 100 15 10 8 8,80 4129
Norm DIN-376 (~DIN-2174)
UNC Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol. 2BX
INDEX D2-923105
7/16-14 11,112 14 1,814 100 15 8 6,2 10,25 4130
1/2-13 12,700 13 1,954 110 18 9 7 11,80 4131
5/8-11 15,875 11 2,309 110 20 12 9 14,80 4133
ISO Vc (m/min)
P 10-30
M 10-25
K -
N 20-40
S -

Example of order Dostępne z magazynu, cena w cenniku
Available from stock
Do szybkiej dostawy, cena na zapytanie 87
On request
C2-923105-4105
Forming tap WGN No 5-40 UNC 2BX DIN-371 C HSSE TN2
