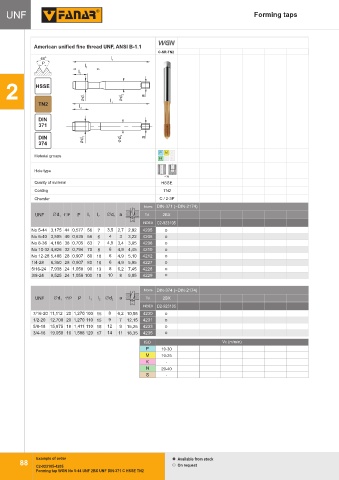

Page 92 - Fanar

UNF Forming taps UNF

ISO Metric coarse thread DIN-13 WGN
American unified fine thread UNF, ANSI B-1.1
C-SR-TN2
60 0 l 1
S
HSSE
H HSSEHSSE
E
S
P
P PM l 3
M
M
P
PM
l 2
2 HSSE d 1 d 2 a
TN2 l 1
l 2
DIN
371
DIN d 1 d 2 a
374
P M K
Material groups
N S H
Hole type
< 3d
Quality of material HSSE
Coating TN2
Chamfer C / 2-3P
Norm DIN-371 (~DIN-2174)
UNF Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol. 2BX
INDEX C2-923105
No 5-44 3,175 44 0,577 56 7 3,5 2,7 2,92 4205
No 6-40 3,505 40 0,635 56 6 4 3 3,22 4206
No 8-36 4,166 36 0,705 63 7 4,5 3,4 3,85 4208
No 10-32 4,826 32 0,794 70 8 6 4,9 4,45 4210
No 12-28 5,486 28 0,907 80 10 6 4,9 5,10 4212
1/4-28 6,350 28 0,907 80 10 6 4,9 5,95 4227
5/16-24 7,938 24 1,058 90 13 8 6,2 7,45 4228
Tolerancja
3/8-24 9,525 24 1,058 100 15 10 8 9,05 4229
Norm DIN-374 (~DIN-2174)
UNF Ćd 1 1''/P P l 1 l 2 Ćd 2 a Tol. 2BX
INDEX D2-923105
7/16-20 11,112 20 1,270 100 15 8 6,2 10,55 4230
1/2-20 12,700 20 1,270 110 15 9 7 12,15 4231
5/8-18 15,875 18 1,411 110 15 12 9 15,25 4233
3/4-16 19,050 16 1,588 120 17 14 11 18,35 4235

ISO Vc (m/min)
P 10-30
M 10-25
K -
N 20-40
S -

Example of order Dostępne z magazynu, cena w cenniku
Available from stock
88 Do szybkiej dostawy, cena na zapytanie
C2-923105-4205 On request
Forming tap WGN No 5-44 UNF 2BX UNF DIN-371 C HSSE TN2
