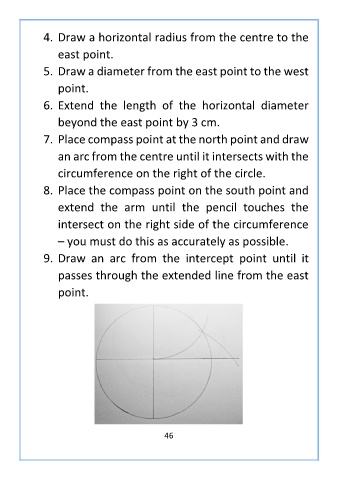

4. Draw a horizontal radius from the centre to the

east point.
5. Draw a diameter from the east point to the west

point.

6. Extend the length of the horizontal diameter
beyond the east point by 3 cm.

7. Place compass point at the north point and draw
an arc from the centre until it intersects with the

circumference on the right of the circle.

8. Place the compass point on the south point and
extend the arm until the pencil touches the

intersect on the right side of the circumference
– you must do this as accurately as possible.

9. Draw an arc from the intercept point until it

passes through the extended line from the east
point.
