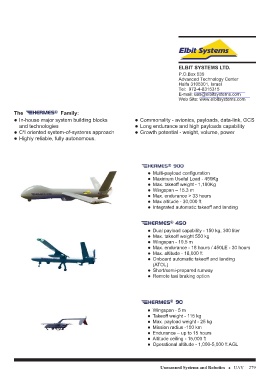

Page 279 - Israel Defense Directory 2013-14

The ® Family: ELBIT SYSTEMS LTD.
P.O.Box 539
In-house major system building blocks Advanced Technology Center
and technologies Haifa 3105301, Israel
C4I oriented system-of-systems approach Tel: 972-4-8315315
Highly reliable, fully autonomous. E-mail: uas@elbitsystems.com
Web Site: www.elbitsystems.com

Commonality - avionics, payloads, data-link, GCS
Long endurance and high payloads capability
Growth potential - weight, volume, power

®

Multi-payload configuration
Maximum Useful Load - 450Kg
Max. takeoff weight - 1,180Kg
Wingspan – 15.3 m
Max. endurance > 33 hours
Max altitude - 30,000 ft
Integrated automatic takeoff and landing

®

Dual payload capability - 150 kg, 300 liter
Max. takeoff weight 550 kg
Wingspan - 10.5 m
Max. endurance - 18 hours / 450LE - 30 hours
Max. altitude - 18,000 ft
Onboard automatic takeoff and landing
(ATOL)
Short/semi-prepared runway
Remote taxi braking option

®

Wingspan - 5 m
Takeoff weight - 115 kg
Max. payload weight - 25 kg
Mission radius -100 km
Endurance – up to 15 hours
Altitude ceiling - 15,000 ft
Operational altitude - 1,000-5,000 ft AGL

Unmanned Systems and Robotics UAV 279
