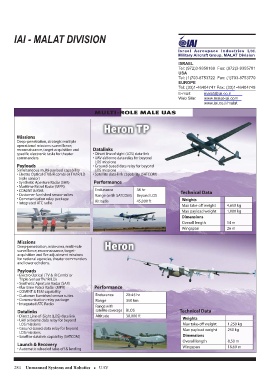

Page 284 - Israel Defense Directory 2013-14

IAI - MALAT DIVISION

Israel Aerospace Industries Ltd.
Military Aircraft Group, MALAT Division

ISRAEL
Tel: (972)3-9358169 Fax: (972)3-9355781
USA
Tel: (1)703-8753722 Fax: (1)703-8753770
EUROPE
Tel: (33)1-46404747 Fax: (33)1-46404748

E-mail: malat@iai.co.il
Web Site: www.malat-iai.com
www.iai.co.il/malat

MULTI-ROLE MALE UAS

Missions Datalinks

Deep-penetration, strategic multiple • Direct line of sight (LOS) data-link
operational missions: surveillance, • UAV airborne data relay for beyond
reconnaissance, target acquisition and LOS missions
specific electronic tasks for theater • Ground-based data relay for beyond
commanders. LOS missions
• Satellite data-link capability (SATCOM)
Payloads
Performance
Simultaneous multi-payload capability
• Electro Optical (TV&IR combi or TV/IR/LD Endurance 36 hr Technical Data
triple sensor)
• Synthetic Aperture Radar (SAR) Range (with SATCOM) Beyond LOS Weights
• Maritime Patrol Radar (MPR) Max take-off weight
• COMINT & ESM Altitude 45,000 ft Max payload weight
• Customer furnished sensor suites Dimensions
• Communication relay package Overall length 4,650 kg
• Integrated ATC radio Wingspan 1,000 kg

14 m
26 m

Missions Performance

Deep-penetration, wide-area, multi-role Endurance 20-45 hr Technical Data
surveillance, reconnaissance, target- 350 km
acquisition and fire adjustment missions Range Weights
for national agencies, theater commanders BLOS Max take-off weight
and lower echelons. Range with 30,000 ft Max payload weight
satellite coverage Dimensions
Payloads Overall length
Altitude Wingspan
• Electro Optical (TV & IR Combi or
Triple Sensor TV/IR/LD) 1,250 kg
• Synthetic Aperture Radar (SAR) 250 kg
• Maritime Patrol Radar (MPR)
• COMINT & ESM capability 8.50 m
• Customer furnished sensor suites 16.60 m
• Communication relay package
• Integrated ATC Radio

Datalinks

• Direct Line-of-Sight (LOS) data link
• UAV airborne data relay for beyond
LOS missions
• Ground-based data relay for beyond
LOS missions
• Satellite datalink capability (SATCOM)

Launch & Recovery

• Automatic wheeled take-off & landing

284 Unmanned Systems and Robotics l UAV
