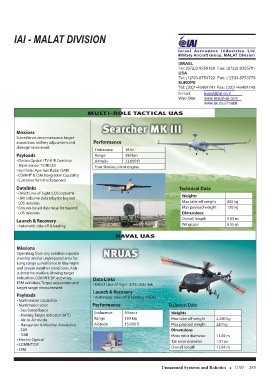

Page 285 - Israel Defense Directory 2013-14

IAI - MALAT DIVISION

Israel Aerospace Industries Ltd.
Military Aircraft Group, MALAT Division

ISRAEL
Tel: (972)3-9358169 Fax: (972)3-9355781
USA
Tel: (1)703-8753722 Fax: (1)703-8753770
EUROPE
Tel: (33)1-46404747 Fax: (33)1-46404748

E-mail: malat@iai.co.il
Web Site: www.malat-iai.com
www.iai.co.il/malat

MULTI-ROLE TACTICAL UAS

Missions Performance

Surveillance, reconnaissance, target- Endurance 18 hr
acquisition, artillery adjustment and
damage assessment. Range 350 km

Payloads Altitude 23,000 ft

• Electro Optical (TV & IR Combi or Four Strokes, silent engine
Triple Sensor TV/IR/LD)
• Synthetic Aperture Radar (SAR) Technical Data 436 kg
• COMINT & ESM Integration Capability 120 kg
• Customer furnished payloads Weights
Max take-off weight 5.85 m
Datalinks Max payload weight 8.55 m
Dimensions
• Direct Line-of-Sight (LOS) data link Overall length
• UAV airborne data relay for beyond Wingspan
LOS missions
• Ground-based data relay for beyond NAVAL UAS
LOS missions
Data Links
Launch & Recovery
• Direct Line-of Sight (LOS) data link
• Automatic take-off & landing
Launch & Recovery
Missions
• Automatic take-off & landing (ATOL)
Operating from any aviation-capable
warship and/or unprepared area for: Performance Technical Data
Long range surveillance in day/night
and severe weather conditions, Anti- Endurance 6 hours Weights 2,200 kg
submarine warfare, Moving target Range 150 km Max take-off weight 220 kg
indication, COMINT/DF activities, Altitude 15,000 ft Max payload weight
ESM activities, Target acquisition and Dimensions 11.02 m
target range measurement Main rotor diameter 1.91 m
Tail rotor diameter 12.84 m
Payloads Overall length

• Multi sensor capability
• Multimode radar:
- Sea Surveillance
- Moving Target Indicator (MTI)
- Air-to-Air mode
- Navigation & Weather Avoidance
- SAR
- ISAR
• Electro-Optical
• COMINT/DF
• ESM

Unmanned Systems and Robotics l UAV 285
