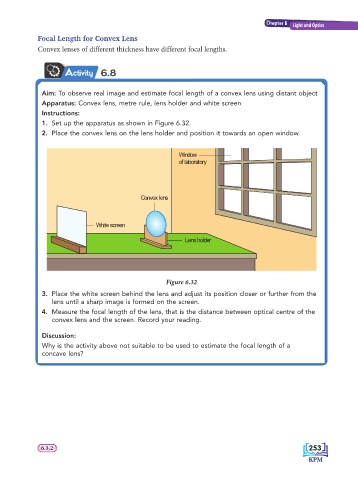

Chapter 6
Light and Optics
Focal Length for Convex Lens
Convex lenses of different thickness have different focal lengths.

Activity 6.8

Aim: To observe real image and estimate focal length of a convex lens using distant object
Apparatus: Convex lens, metre rule, lens holder and white screen
Instructions:
1. Set up the apparatus as shown in Figure 6.32.
2. Place the convex lens on the lens holder and position it towards an open window.

Window
of laboratory

Convex lens

White screen

Lens holder

Figure 6.32
3. Place the white screen behind the lens and adjust its position closer or further from the
lens until a sharp image is formed on the screen.
4. Measure the focal length of the lens, that is the distance between optical centre of the
convex lens and the screen. Record your reading.

Discussion:
Why is the activity above not suitable to be used to estimate the focal length of a
concave lens?
