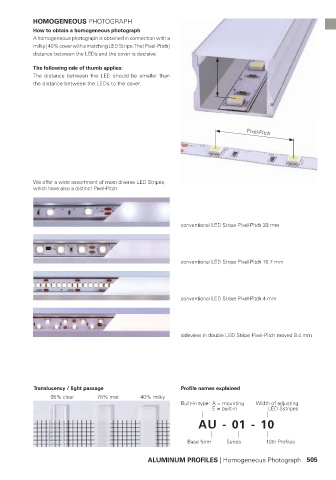

HOMOGENEOUS PHOTOGRAPH
How to obtain a homogeneous photograph
A homogeneous photograph is obtained in connection with a
milky | 40% cover with a matching LED Stripe. The [Pixel-Pitch]
distance between the LEDs and the cover is decisive.
The following rule of thumb applies:
The distance between the LED should be smaller than
the distance between the LEDs to the cover.

Pixel-Pitch

We offer a wide assortment of most diverse LED Stripes,
which have also a distinct Pixel-Pitch.

conventional LED Stripe Pixel-Pitch 33 mm

conventional LED Stripe Pixel-Pitch 16.7 mm

conventional LED Stripe Pixel-Pitch 4 mm

sideview in double LED Stripe Pixel-Pitch moved 8.4 mm

Translucency / light passage Profile names explained
95% clear 75% mat 40% milky
Built-in type: A = mounting Width of adjusting
E = built-in LED Sstripes
AU - 01 - 10

Base form Series 10th Profiles

ALUMINUM PROFILES | Homogeneous Photograph 505
