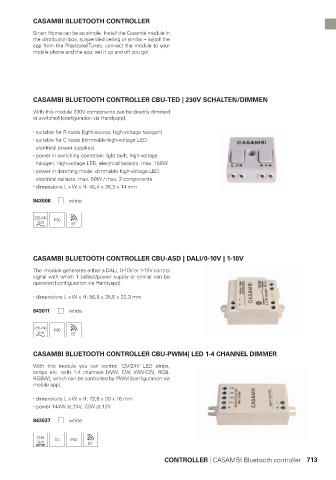

CASAMBI BLUETOOTH CONTROLLER
Smart Home can be so simple. Install the Casambi module in
the distribution box, suspended ceiling or similar – install the
app from the Playstore/iTunes, connect the module to your
mobile phone and the app, set it up and off you go!
CASAMBI BLUETOOTH CONTROLLER CBU-TED | 230V SCHALTEN/DIMMEN
With this module 230V components can be directly dimmed
or switched [configuration via Handyapp].
suitable for R-loads [light source, high-voltage halogen]
suitable for C loads [dimmable high-voltage LED,
electrical power supplies]
power in switching operation: light bulb, high-voltage
halogen, high-voltage LED, electrical ballasts: max. 150W
power in dimming mode: dimmable high-voltage LED,
electrical ballasts: max. 50W / max. 2 components
dimensions L x W x H: 40,4 x 36,3 x 14 mm
843008 white
220-240
IP20
CASAMBI BLUETOOTH CONTROLLER CBU-ASD | DALI/0-10V | 1-10V
The module generates either a DALI, 0-10V or 1-10V control
signal with which 1 ballast/power supply or similar can be
operated [configuration via Handyapp].
dimensions L x W x H: 56,5 x 35,8 x 22,3 mm
843011 white
220-240 IP20
CASAMBI BLUETOOTH CONTROLLER CBU-PWM4| LED 1-4 CHANNEL DIMMER
With this module you can control 12V/24V LED strips,
lamps etc. with 1-4 channels [WW, CW, WW-CW, RGB,
RGBW], which can be controlled by PWM [configuration via
mobile app].
dimensions L x W x H: 72,6 x 30 x 18 mm
power 144W at 24V, 72W at 12V
843037 white
12-24 CV IP20
