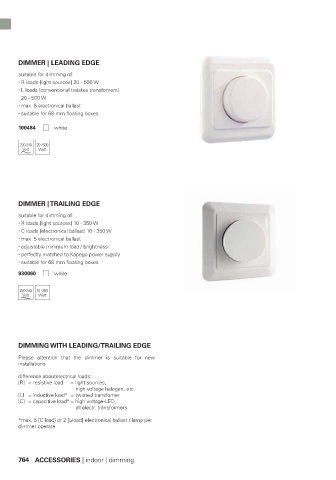

DIMMER | LEADING EDGE
suitable for dimming of:
R loads [light sources] 20 - 500 W
L loads [conventional twistes transfomers]
20 - 500 W
max. 5 electronical ballast
suitable for 68 mm floating boxes
100484 white
220-240 20 - 500
DIMMER | TRAILING EDGE
suitable for dimming of:
R loads [light sources] 10 - 350 W
C loads [electronical ballast] 10 - 350 W
max. 5 electronical ballast
adjustable minimum load / brightness
perfectly matched to Kapego power supply
suitable for 68 mm floating boxes
930060 white
220-240 10 - 350
DIMMING WITH LEADING/TRAILING EDGE
Please attention that the dimmer is suitable for new
installations.
difference aboutelectrical loads:
[R] = resistive load = light sources,
high voltage halogen, etc.
[L] = inductive load* = twisted transfomer
[C] = capacitive load* = high voltage-LED,
all electr. transformers
*max. 5 [C load] or 2 [L-load] electronical ballast / lamp per
dimmer operate
764 ACCESSORIES | indoor | dimming
