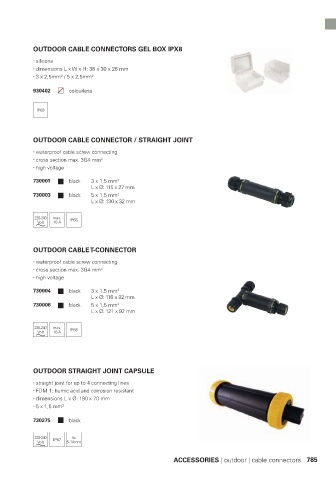

OUTDOOR CABLE CONNECTORS GEL BOX IPX8
silicone
dimensions L x W x H: 38 x 30 x 26 mm
3 x 2,5mm² / 5 x 2,5mm²
930402 colourless
IP68
OUTDOOR CABLE CONNECTOR / STRAIGHT JOINT
waterproof cable screw connecting
cross section max. 3G4 mm 2
high voltage
730001 black 3 x 1,5 mm 2
L x Ø: 115 x 27 mm
730003 black 5 x 1,5 mm 2
L x Ø: 130 x 32 mm
220-240 max.
16 A IP68
OUTDOOR CABLE T-CONNECTOR
waterproof cable screw connecting
cross section max. 3G4 mm 2
high voltage
730004 black 3 x 1,5 mm 2
L x Ø: 116 x 92 mm
730006 black 5 x 1,5 mm 2
L x Ø: 121 x 92 mm
220-240 max. IP68
16 A
OUTDOOR STRAIGHT JOINT CAPSULE
straight joint for up to 4 connecting lines
FDM 1: humic acid and corrosion resistant
dimensions L x Ø: 190 x 70 mm
5 x 1,5 mm²
730275 black
220-240 IP67 4x
5-14mm
